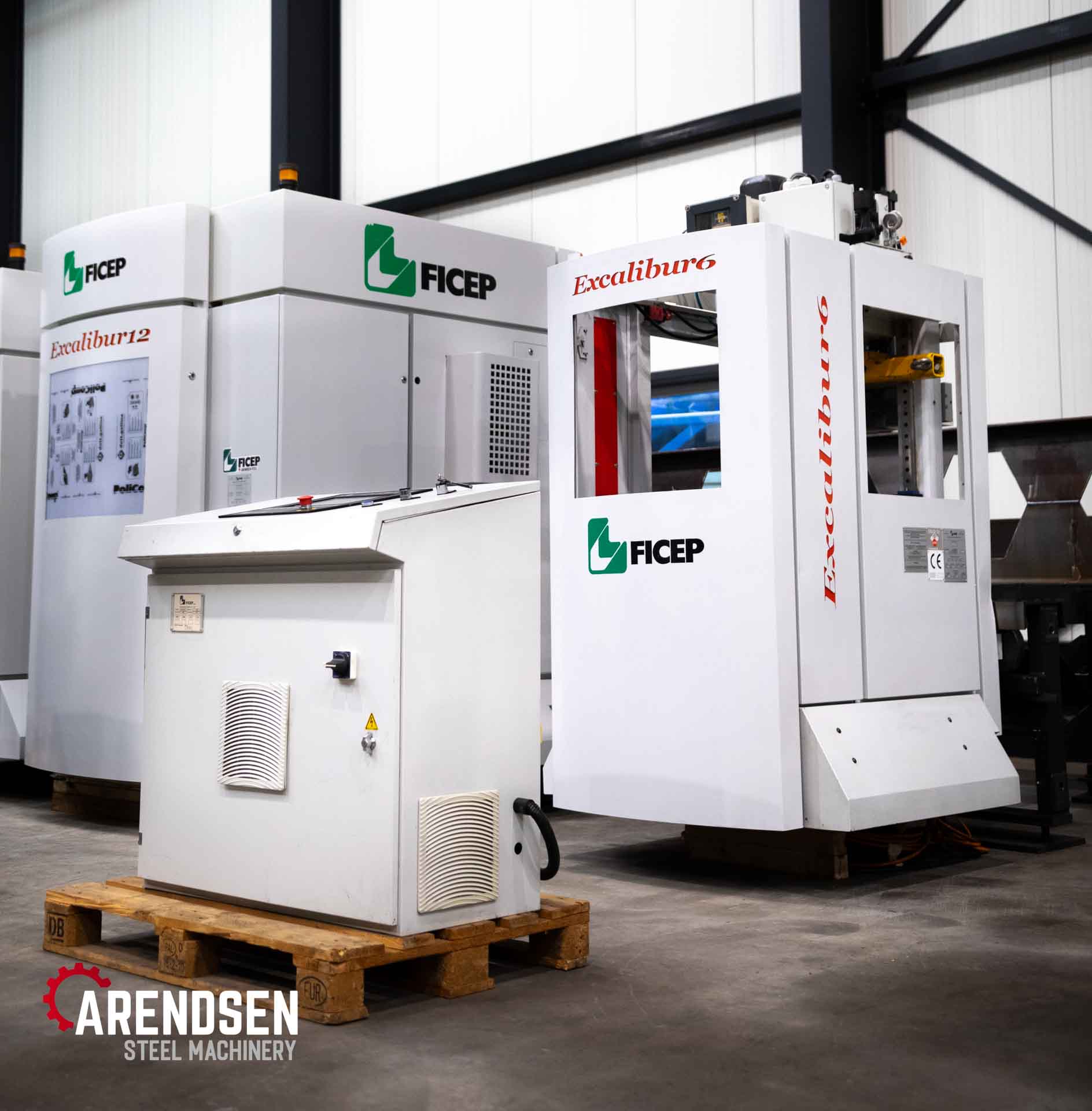

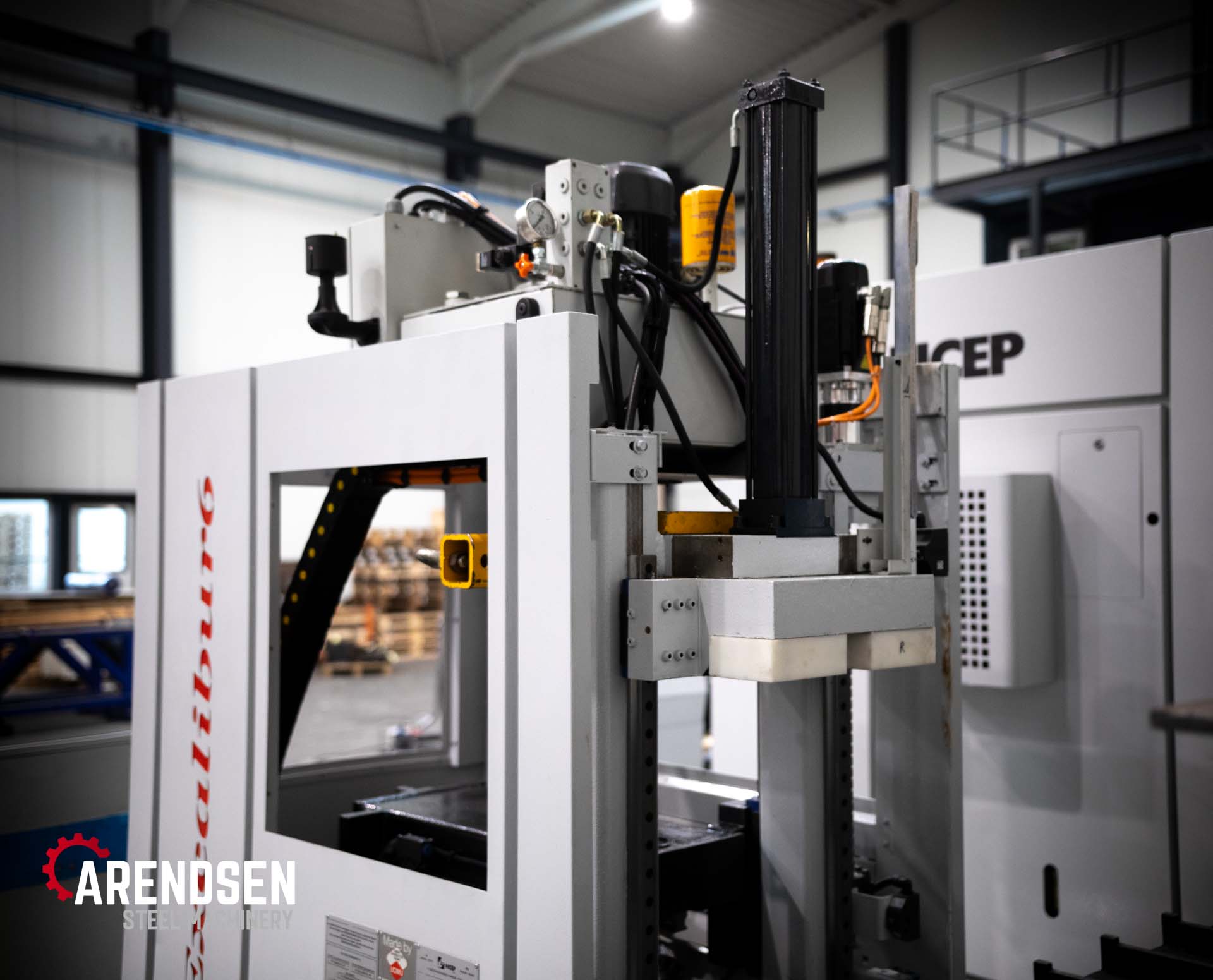

Ficep Excalibur 601 DE CNC drilling machine

This machine is 100% inspected and ready for production

Machine type

Excalibur CNC drilling machine for flat steel and profiles

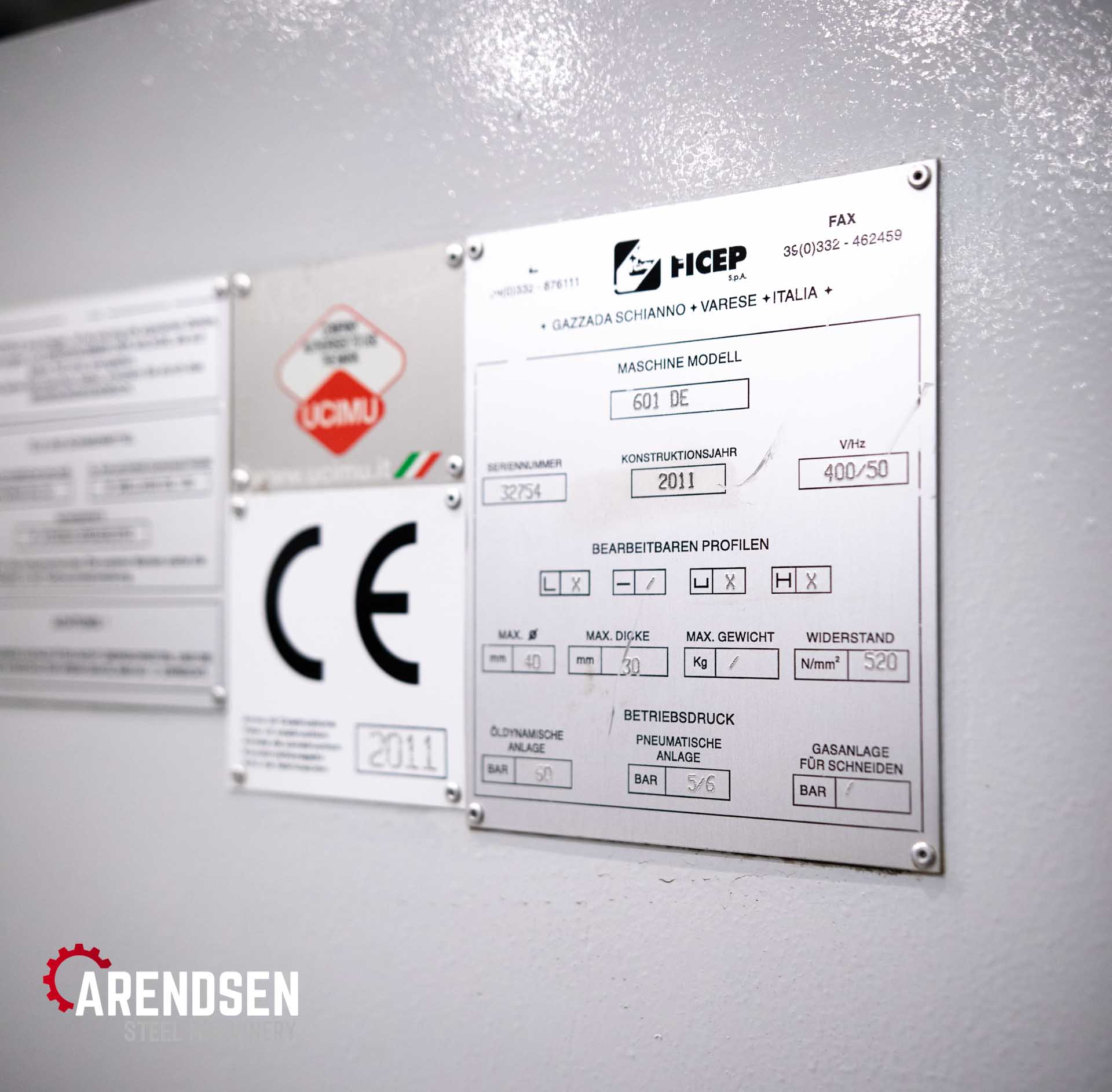

Year of Manufacture

2011

Condition

As good as new

Condition

★★★★★
This machine has been completely cleaned and checked

MACHINE INFORMATION

Functioning of the machine (Ficep Excalibur 601 DE CNC drilling machine)

Plate Processing

The Ficep Excalibur 601 DE CNC drilling machine is a compact and reliable CNC drilling machine designed for machining flat steel, angle sections and structural profiles. Featuring a longitudinally traversing drilling unit, this model offers an efficient solution for processing workpieces up to 12 metres in length.

Equipped with a CNC-controlled drilling head and a robust travelling column design, the 601 DE Excalibur ensures accurate positioning and consistent drilling performance. Its practical configuration makes it particularly suitable for small to medium-sized steel fabrication workshops seeking dependable and straightforward CNC drilling capability.

Technical specifications

CNC-controlled travelling unit

The drilling unit moves along the X-axis with a traverse range of 0 – 12,000 mm, allowing precise machining of long workpieces without repositioning.

Mitrol control system

The machine is equipped with a Mitrol CNC control system, part of the Ficep Group, ensuring reliable programming and user-friendly operation.

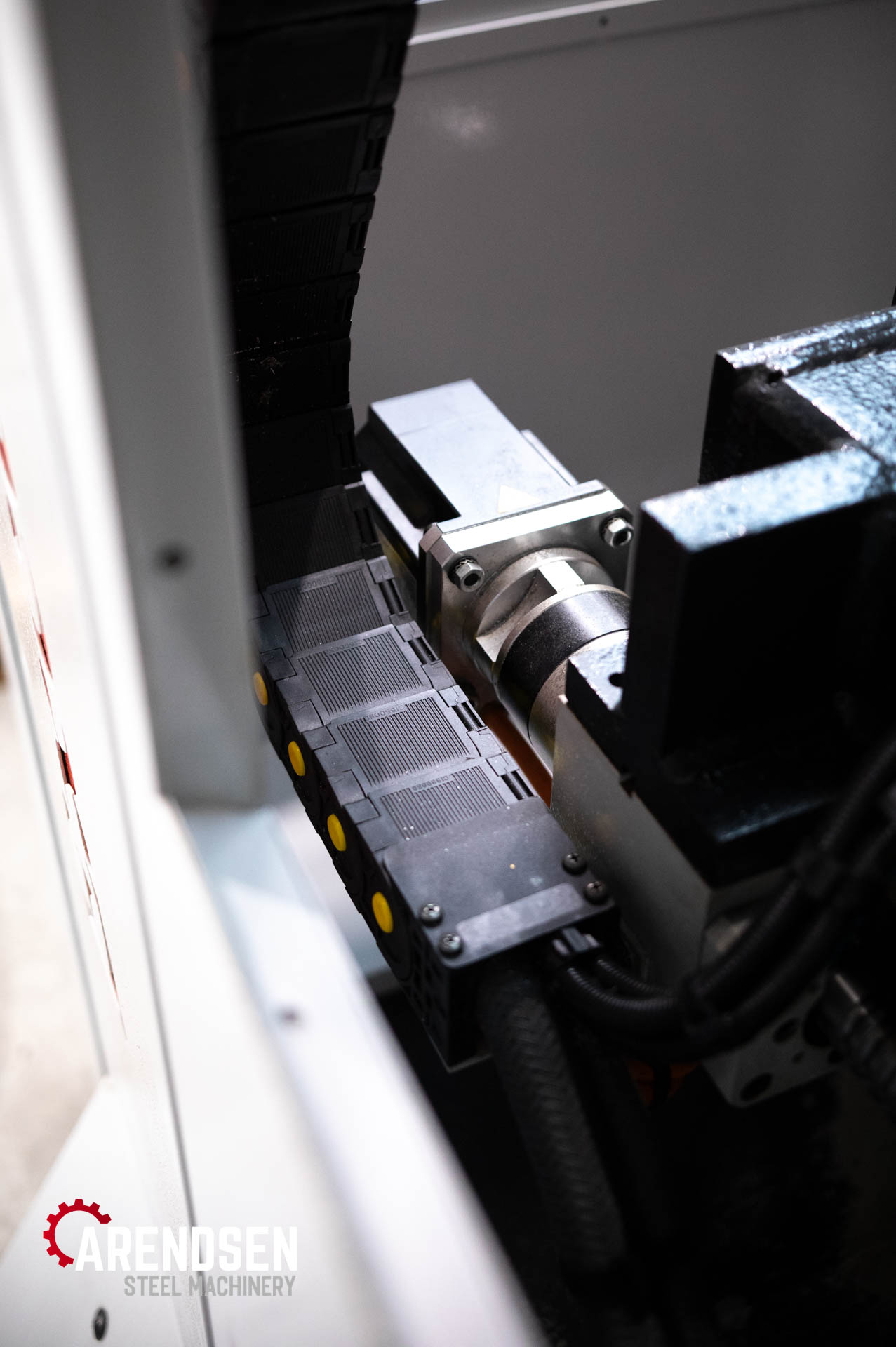

Horizontal drilling head

Fitted with one horizontal drilling spindle, delivering stable and accurate hole production across various profile types.

Manual tool change system

The quick-action chuck enables fast manual tool changes, supporting the use of HSS drills as well as Kennametal indexable insert drilling tools.

Stable material handling

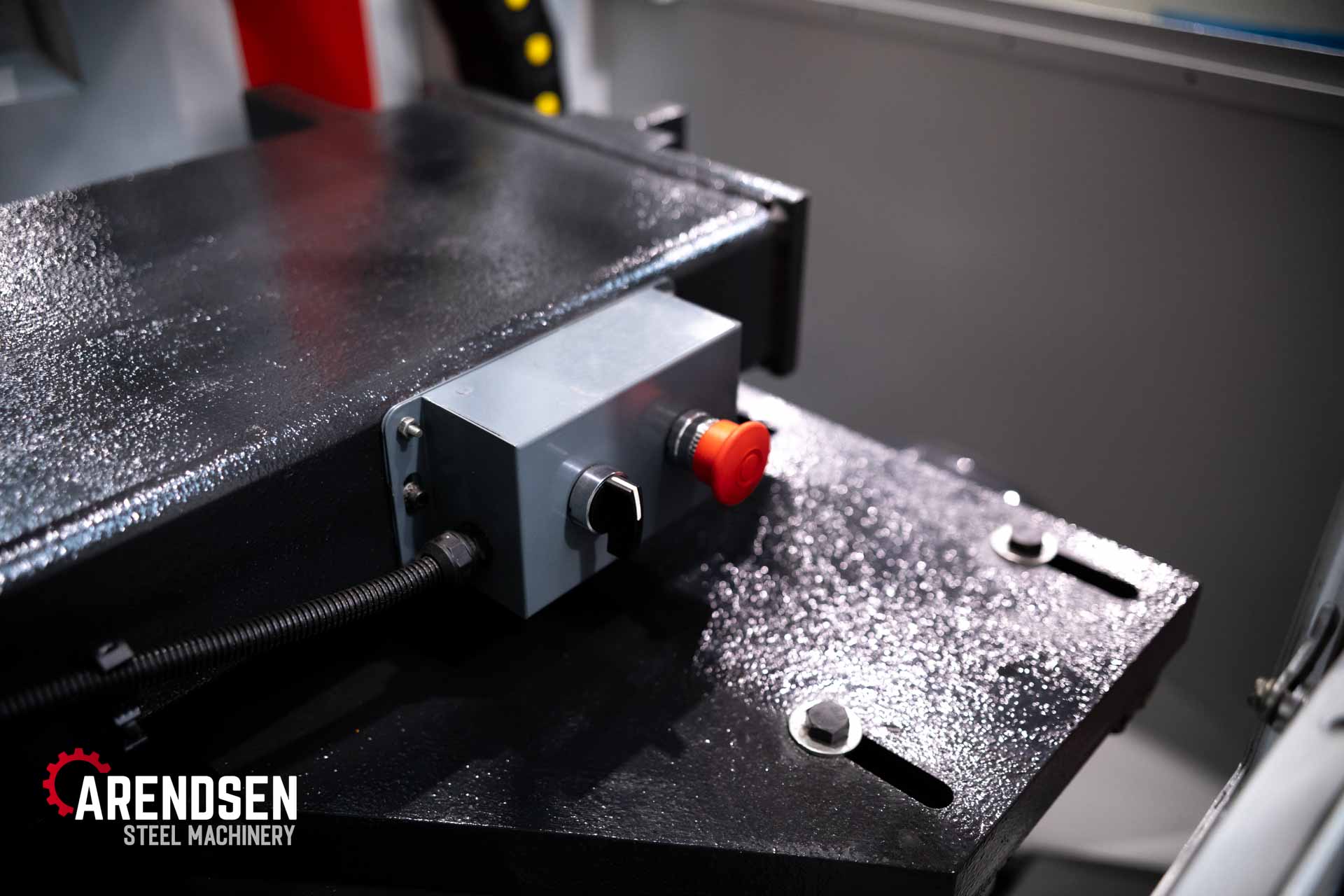

A clamping device and integrated position detection system ensure secure and accurate workpiece positioning during processing.

Flexible profile range

Suitable for profiles from 30 × 30 mm up to a maximum of 610 × 610 mm.

DETAILS

General Details

Excaliber 601 DE / CNC drilling machine

X-axis travel

Up to 12000 mm

Spindle power

7.5 kW

Spindle speed range

180 – 1,500 rpm

Drilling diameter

5 – 40 mm

Maximum profile size

610 × 610 mm

Minimum profile size

30 × 30 mm

Drilling head

Horizontal

Tool change

Manual with quick-action chuck

CNC control

Mitrol (Ficep Group)
