Excaliber 1201 DE

This machine is 100% inspected and ready for production

Machine type

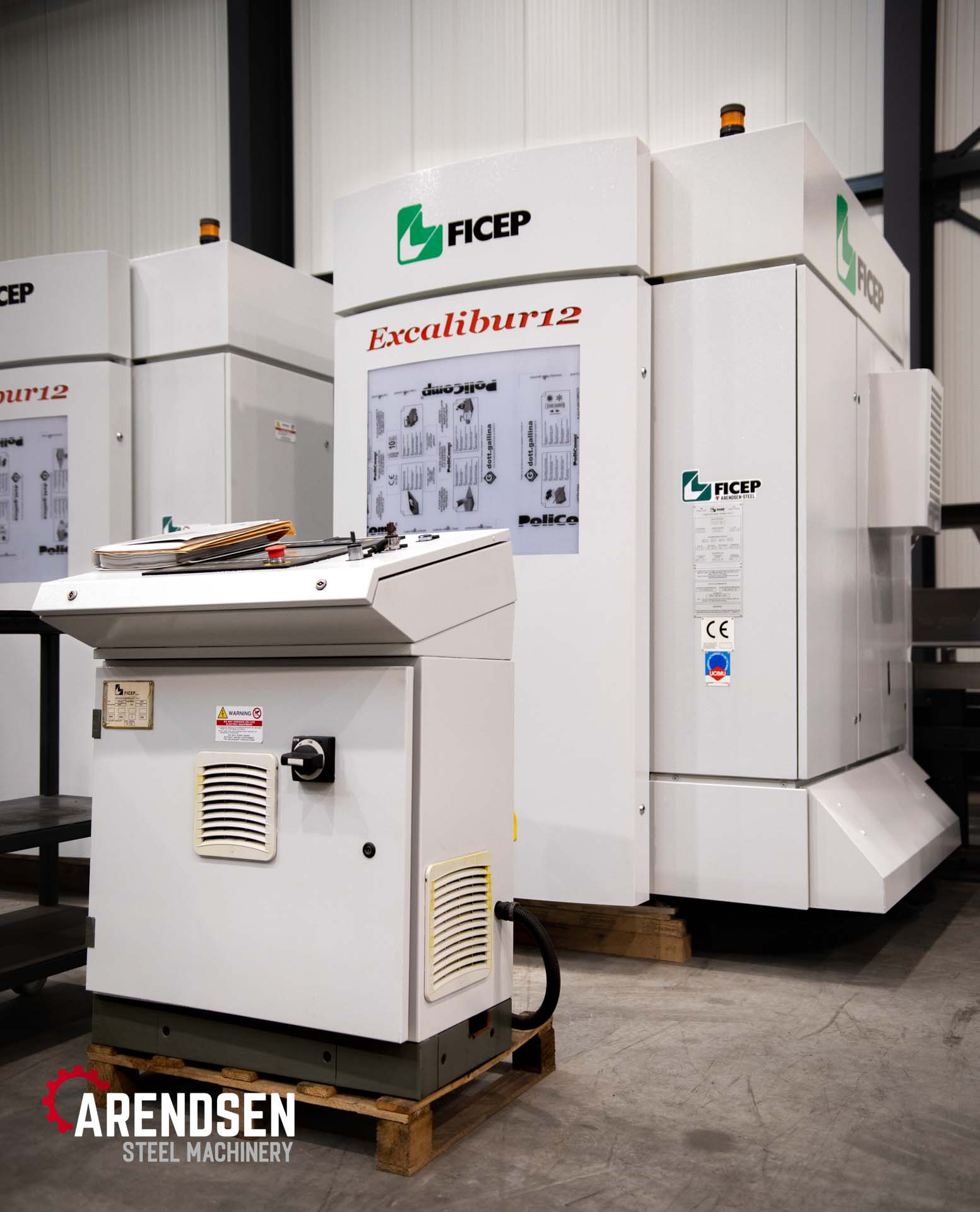

Compact, powerful CNC drilling centre for structural steel

Year of Manufacture

2010

Condition

As good as new

Condition

★★★★★
This machine has been completely cleaned and checked

MACHINE INFORMATION

Functioning of the machine (Ficep Excalibur 1201 DE CNC drilling machine)

Plate Processing

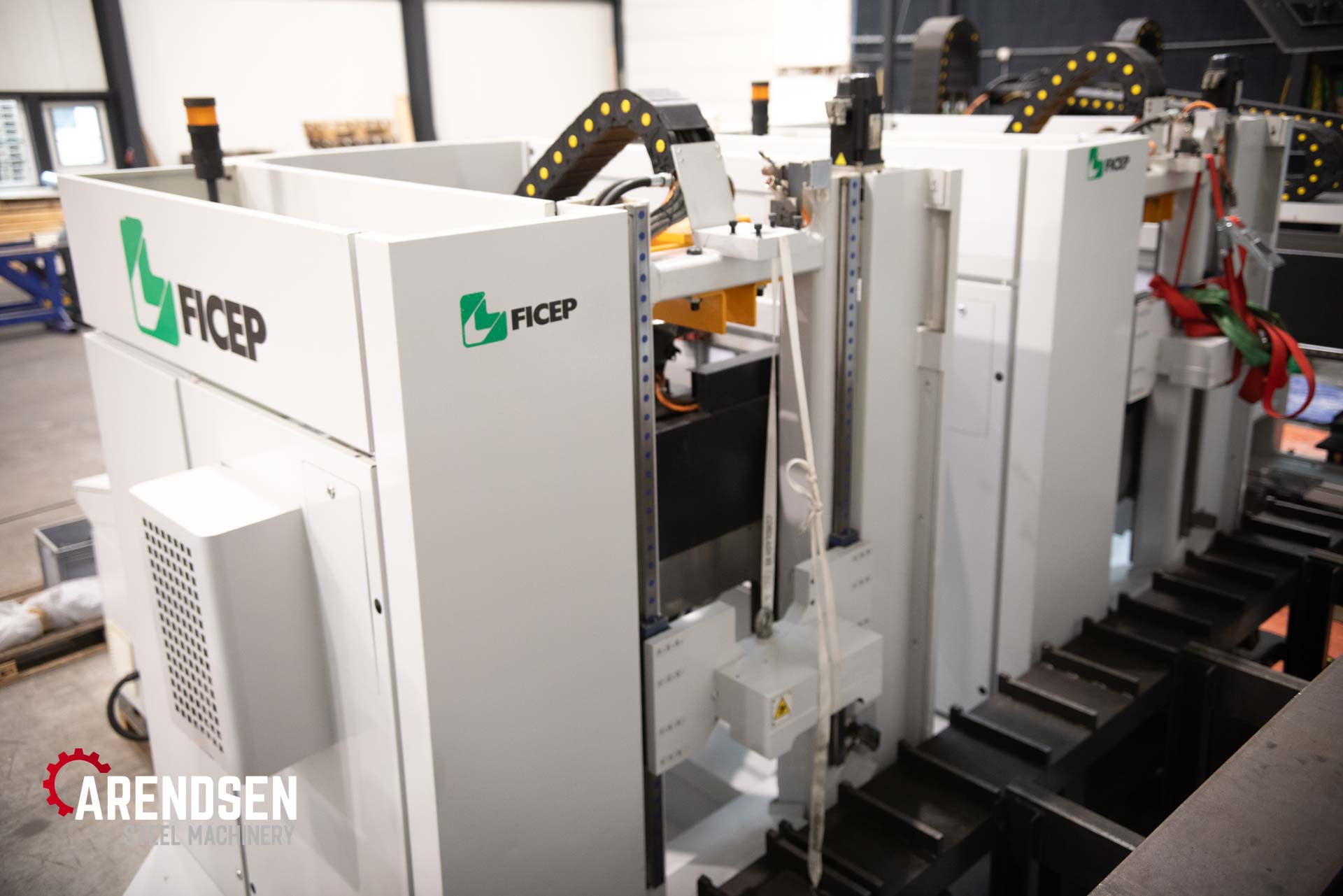

The Ficep Excalibur 1201 DE CNC drilling machine is a reliable and cost-effective CNC drilling machine designed primarily for structural steel profiles and flat steel. Built with robust industrial components and a space-saving travelling drilling unit, this machine delivers high productivity and precision while occupying minimal workshop floor space. It is an ideal solution for steel fabricators, manufacturers and subcontractors seeking dependable drilling and machining performance for profiles, beams, tubes and flat plate work.

Technical specifications

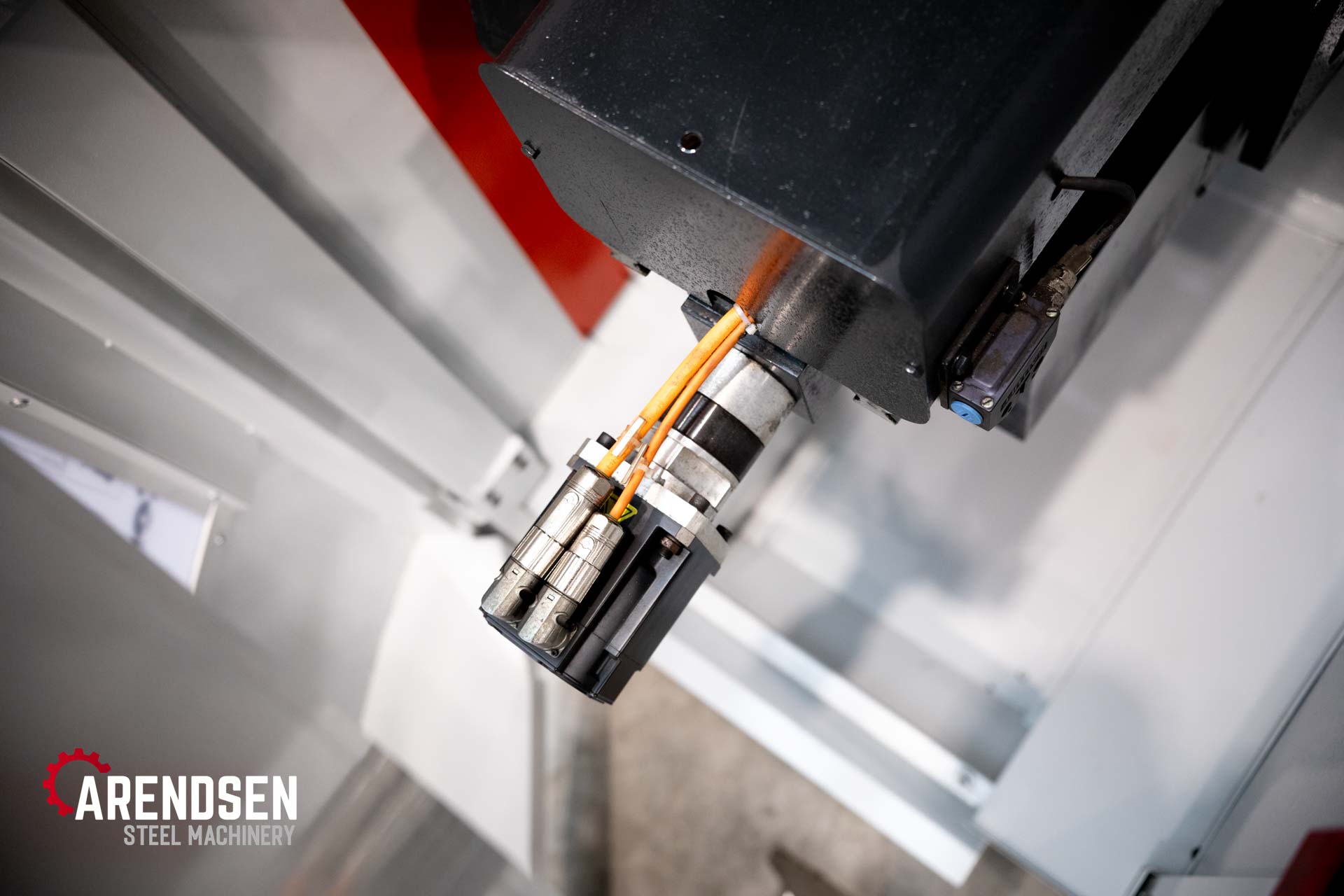

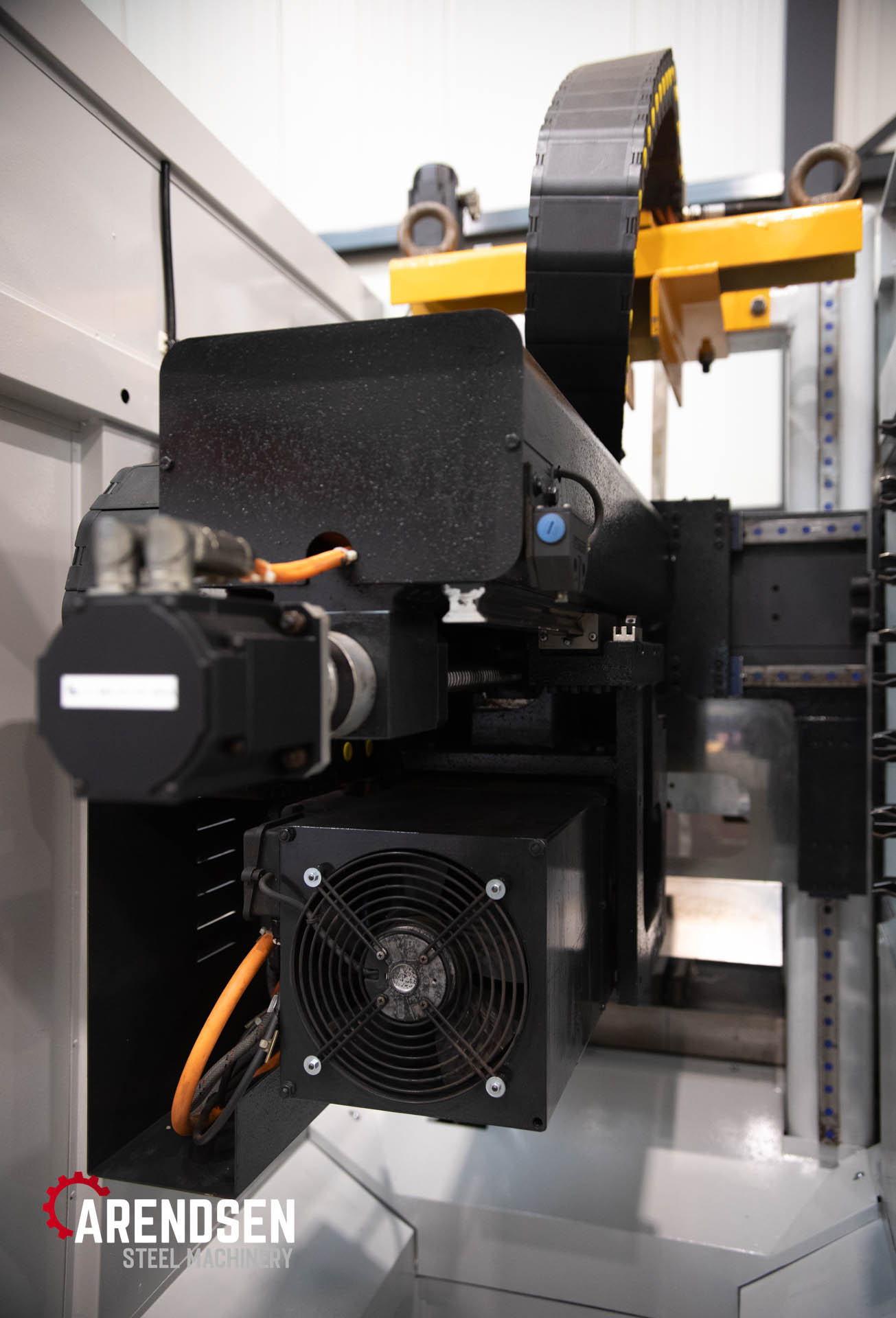

CNC-controlled drilling unit

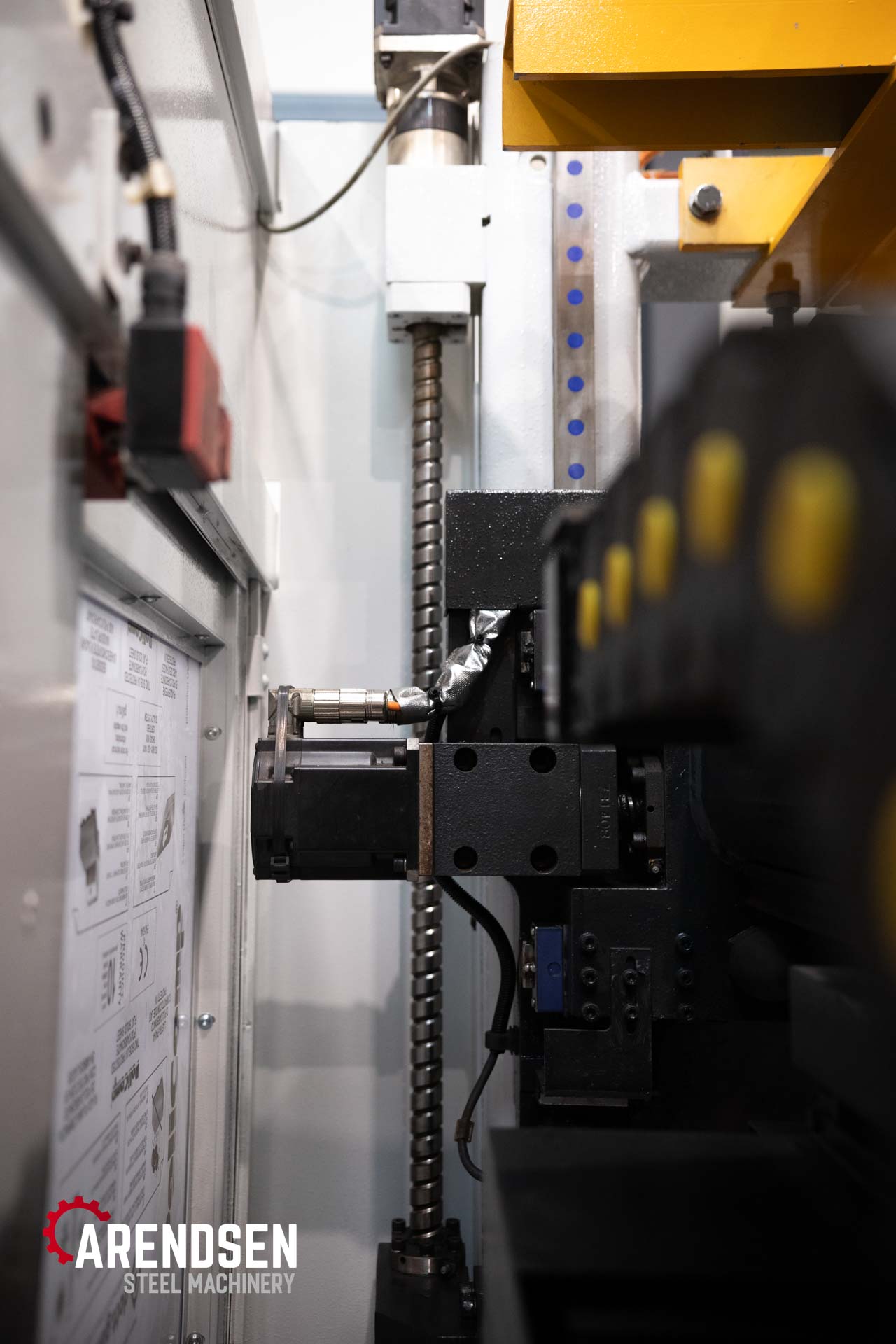

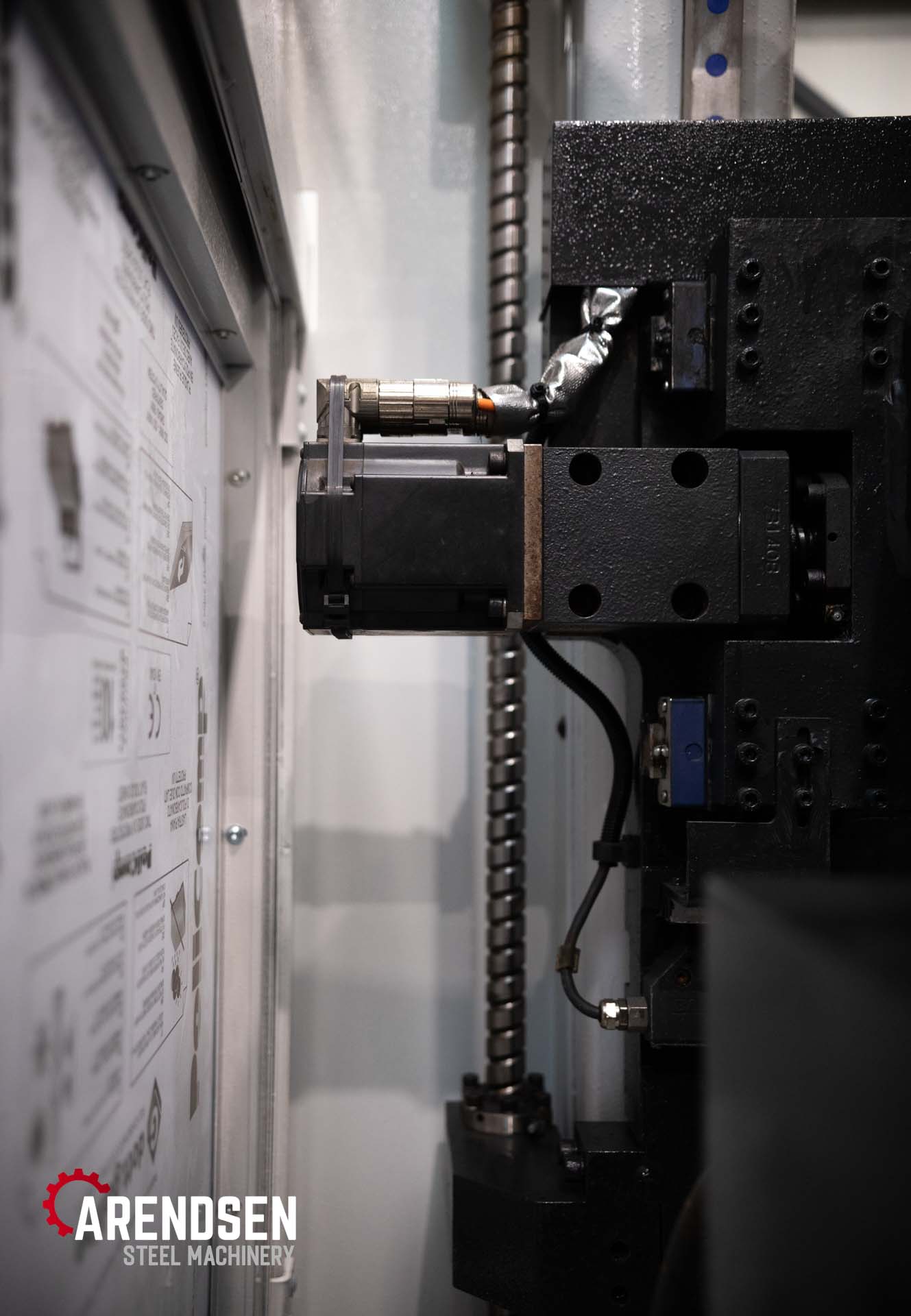

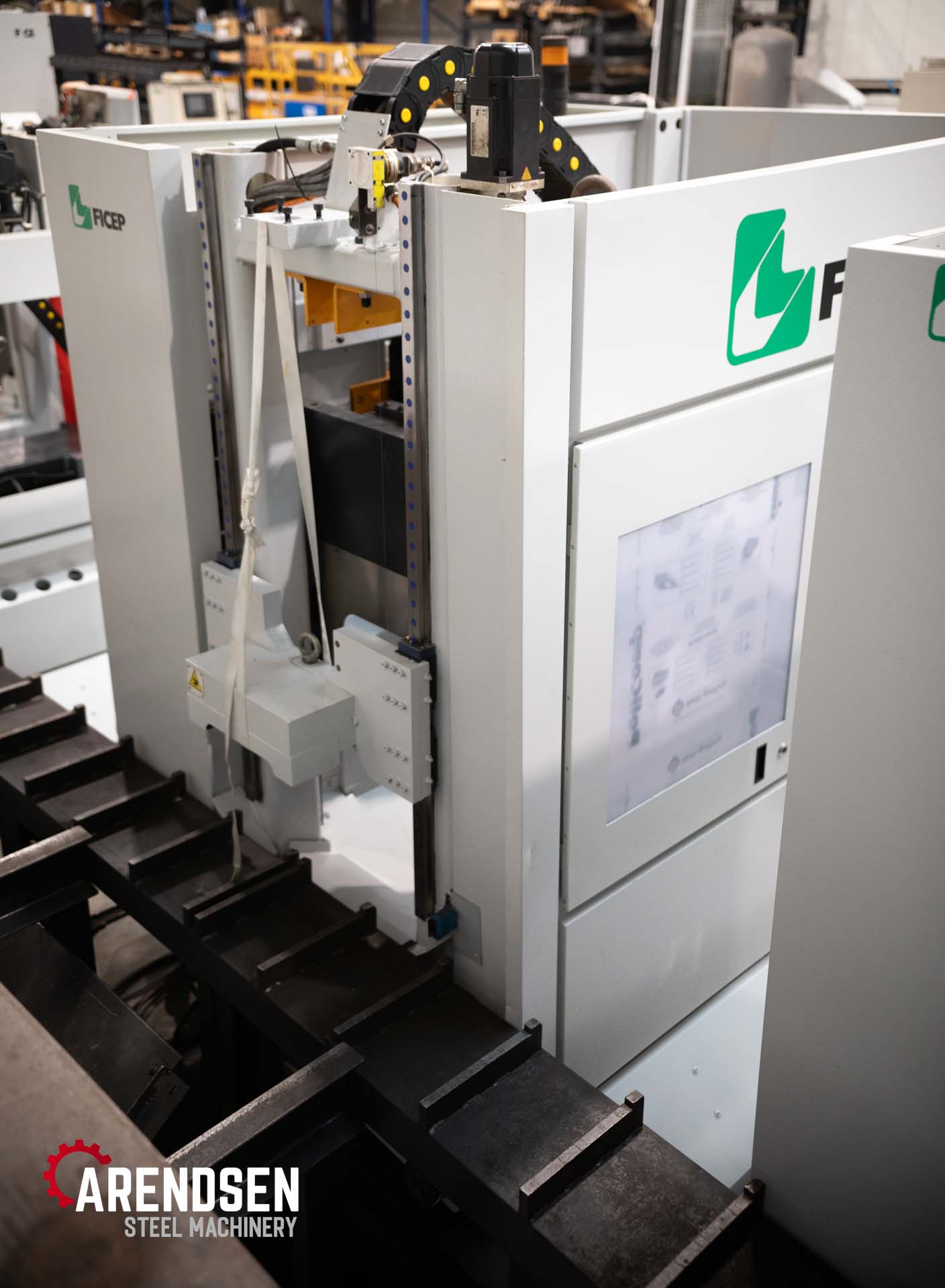

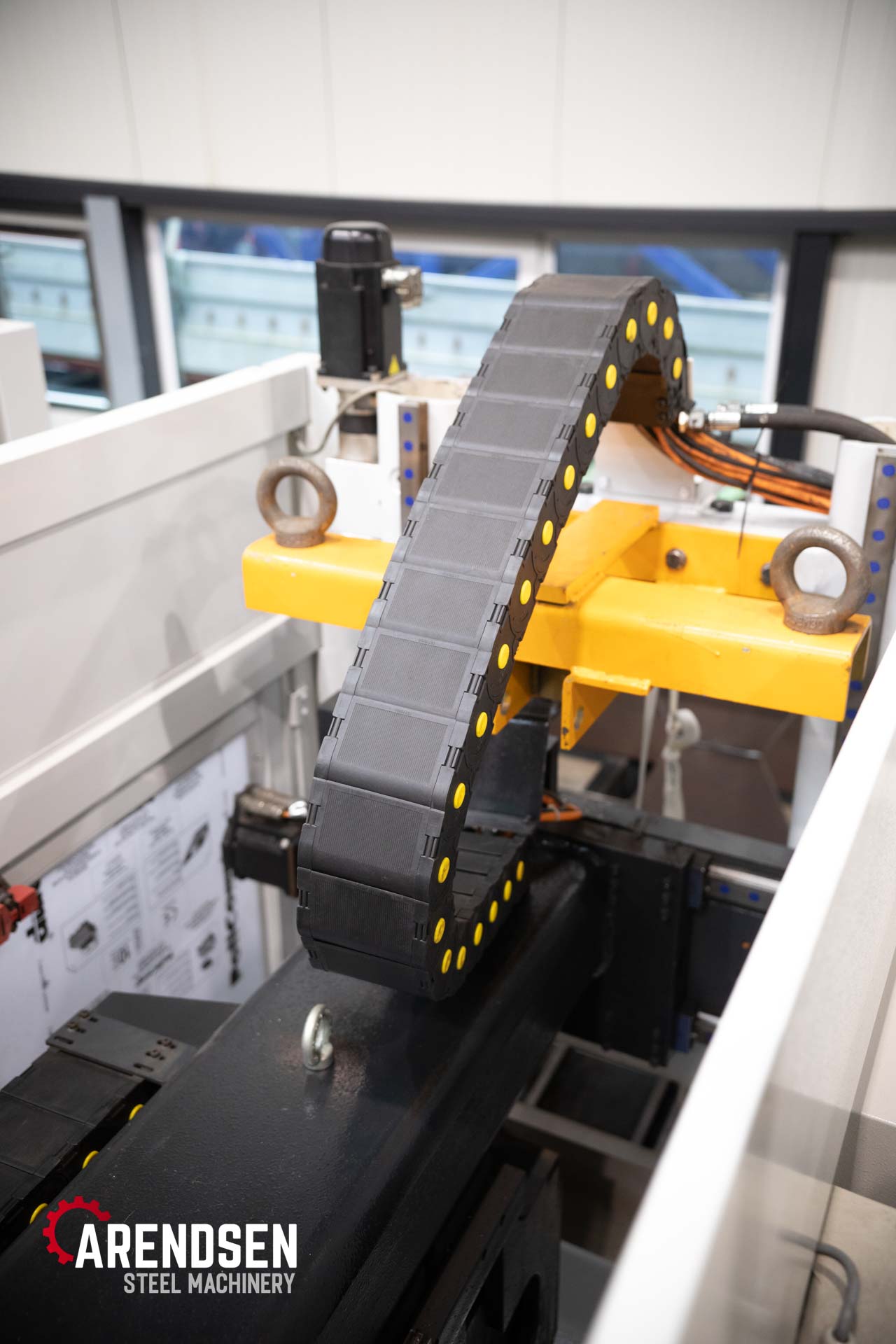

The Excalibur 1201DE features a single CNC-controlled drilling head that travels along the X-axis of the machine’s heavy-duty support frame. This enables consistent, repeatable hole drilling without constant operator adjustments.

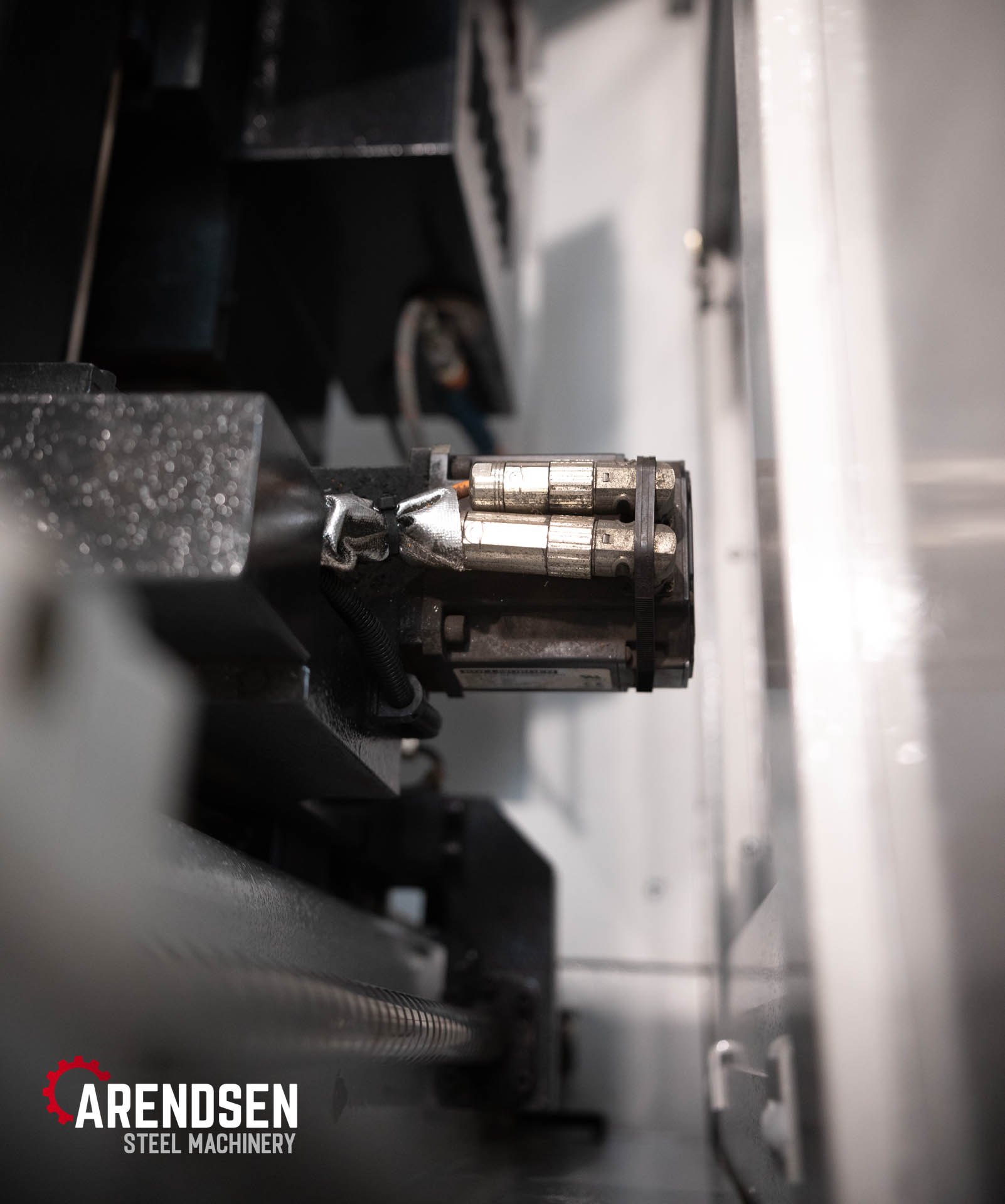

Automatic tool changing

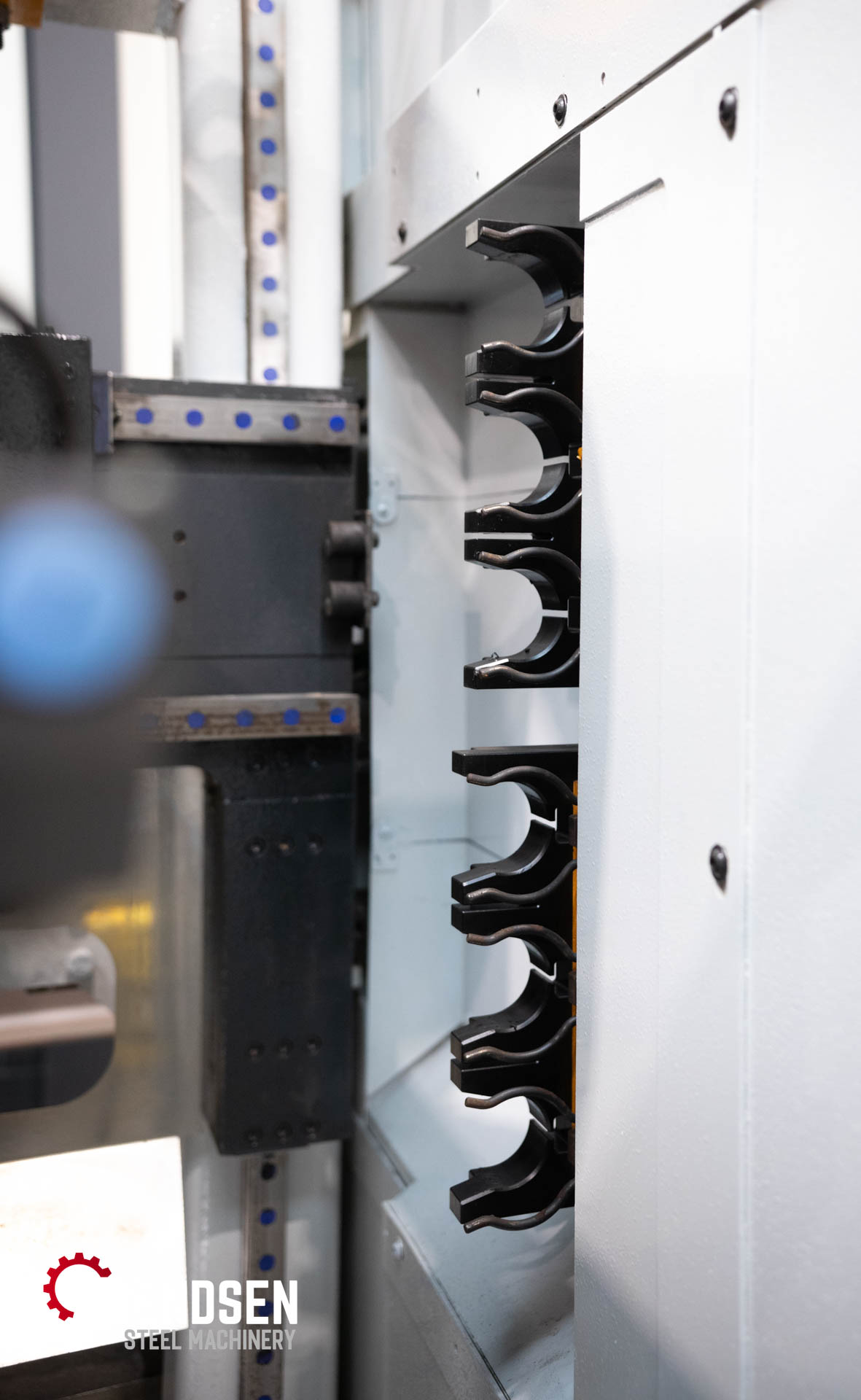

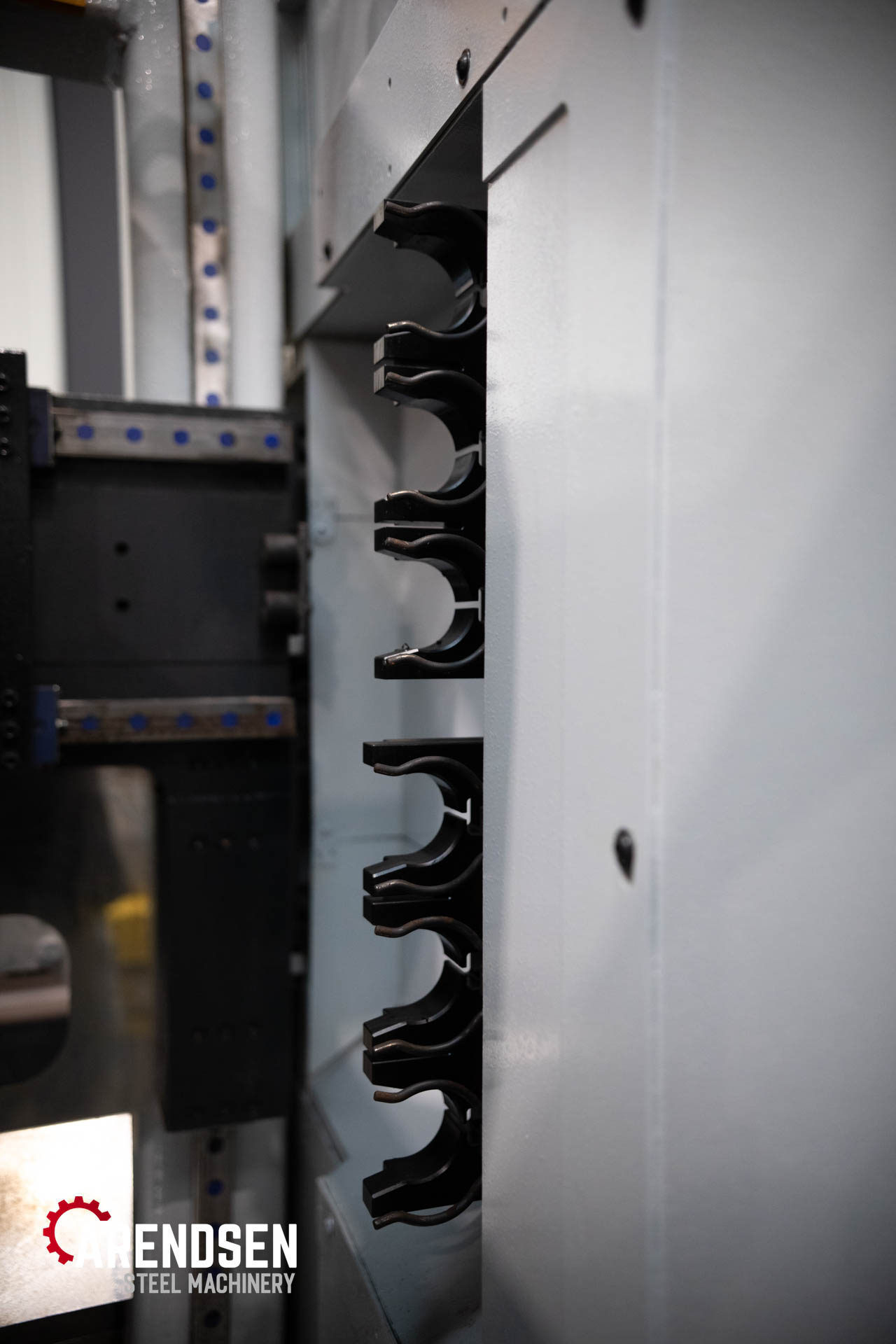

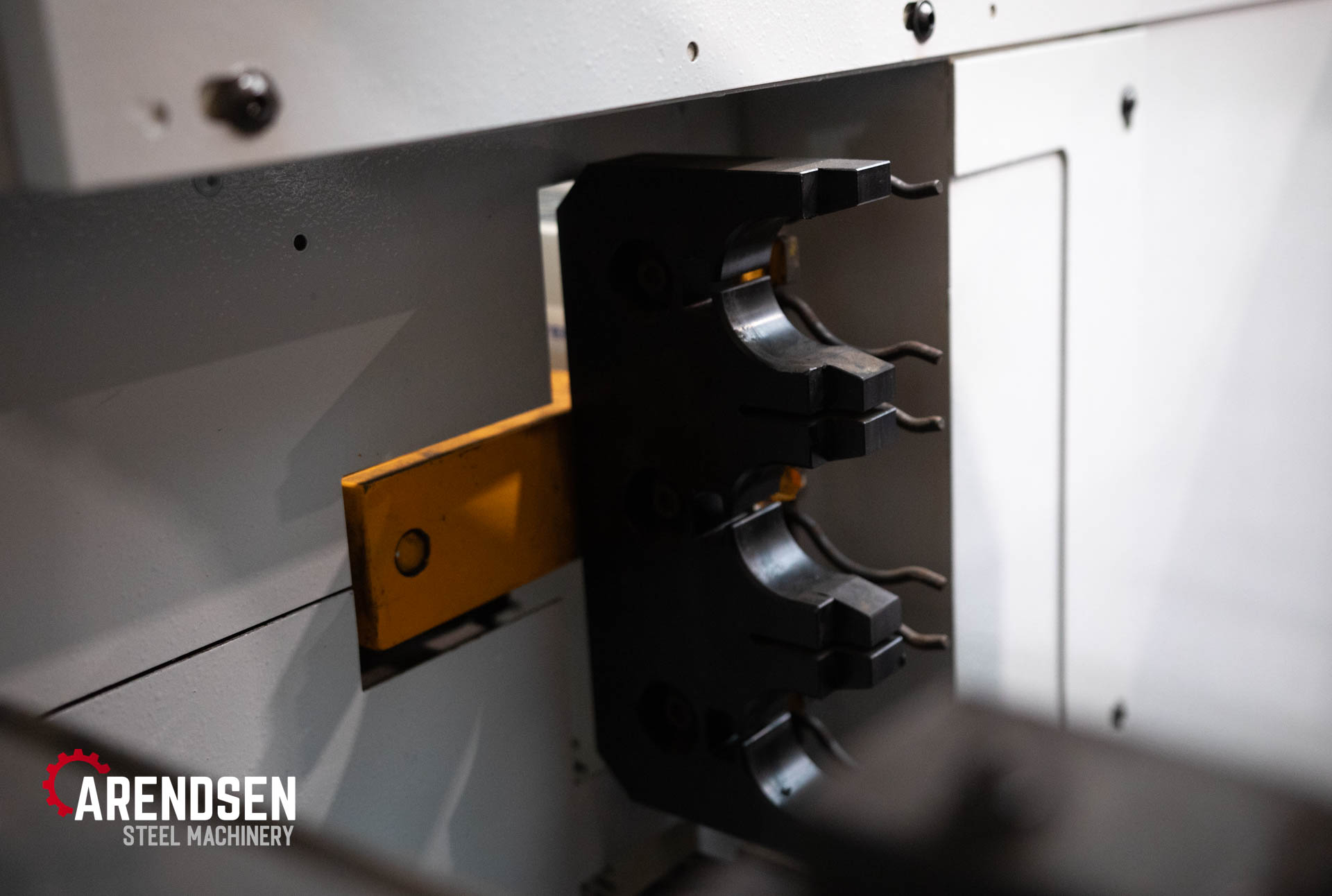

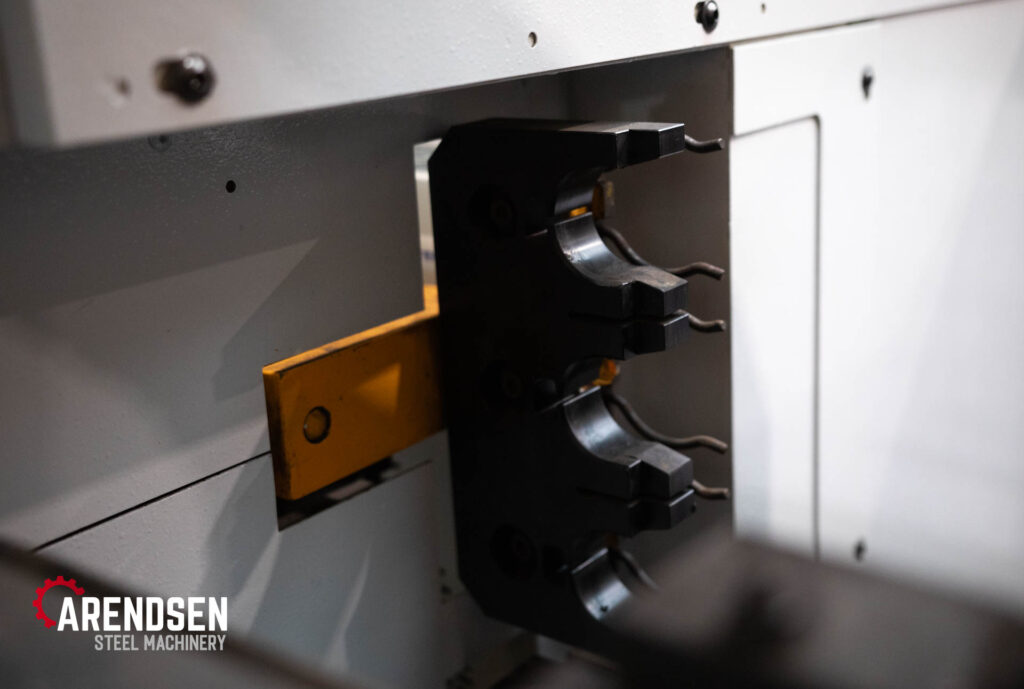

Equipped with a 6-position automatic tool changer and HSK A80 tool holders, the machine supports efficient changeovers between drills, taps and milling cutters as required by the programme.

Flexible profile handling

Profiles such as beams, angle steel, square and rectangular tubes, and flat bars are easily positioned on the fixed support table. The Excalibur system then automatically moves along the component to perform all programmed operations.

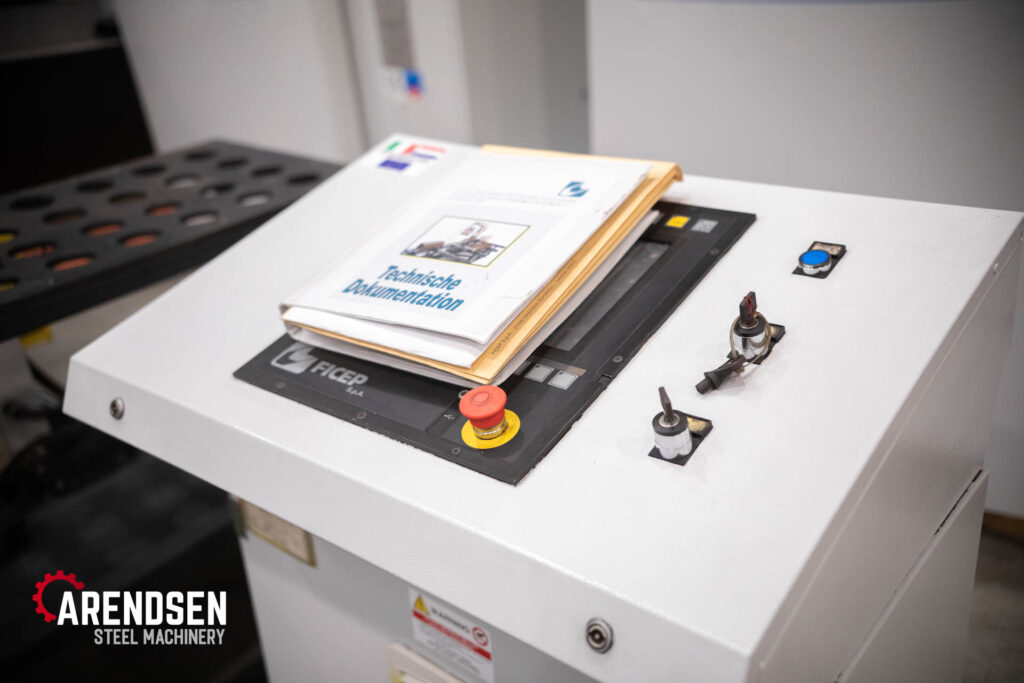

Simple program loading

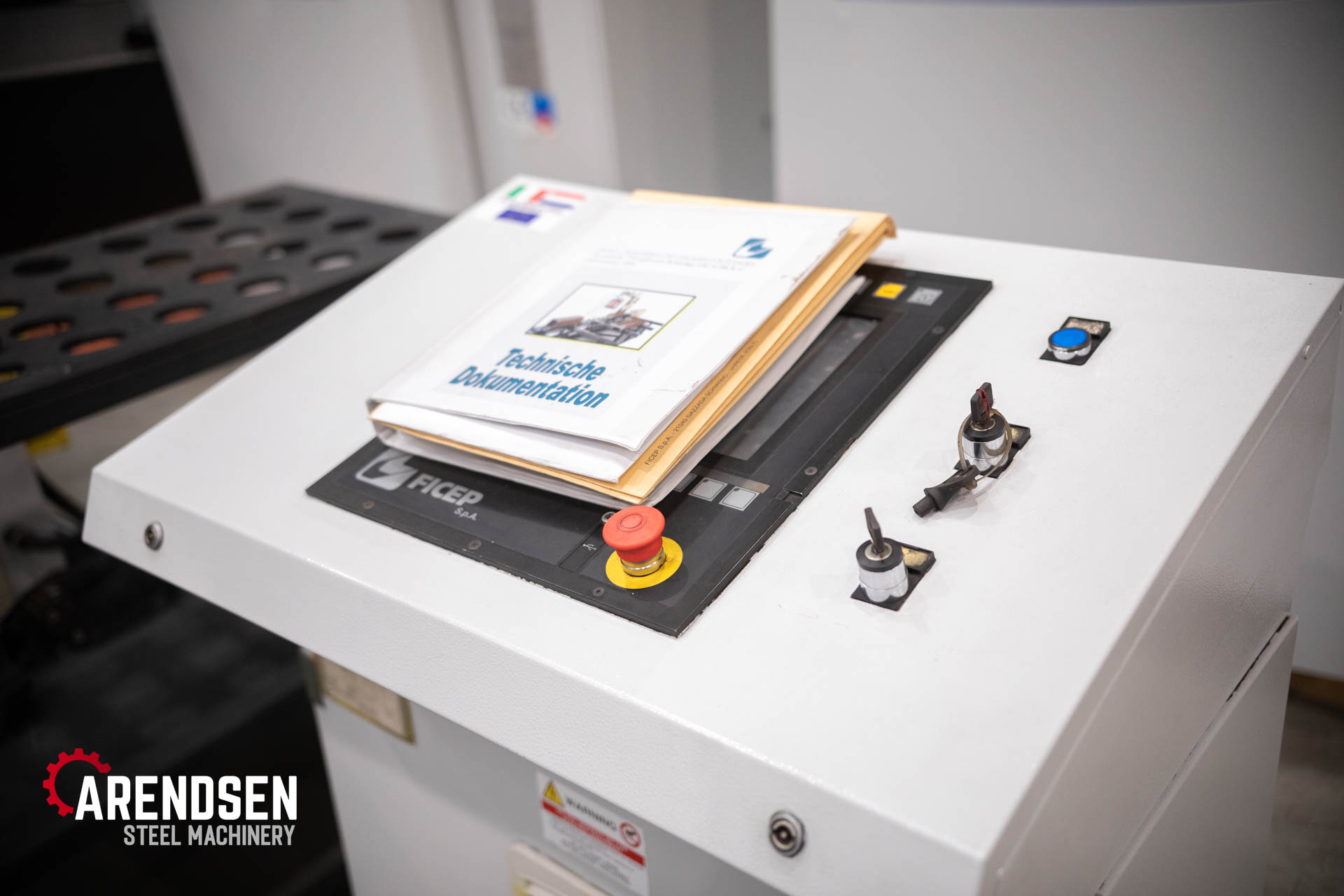

Program data can be entered directly at the control panel or loaded via standard CNC interfaces. Once started, the machine automatically advances along the material and processes all drilling positions without interruption.

Compact yet productive

The Excalibur’ travelling drilling unit concept makes the machine particularly compact compared to conventional beam drilling lines, yet still highly capable in terms of throughput and accuracy.

DETAILS

General Details

Excaliber 1201 DE / Compact, powerful CNC drilling centre for structural steel

Drilling axis travel

Up to 15000 mm

Drilling spindle power

19 KW

Spindle speed

180 – 3000 rpm

Maximum drilling diameter

up to 40mm

Thread cutting

M6 – M30

Tool changer

Automatic, 6 positions (HSK A80)

Profile max size

1,200 × 1,200 mm

Support frame length

typically 15 m

CNC control

Mitrol / Pegaso CNC (platform dependent)
