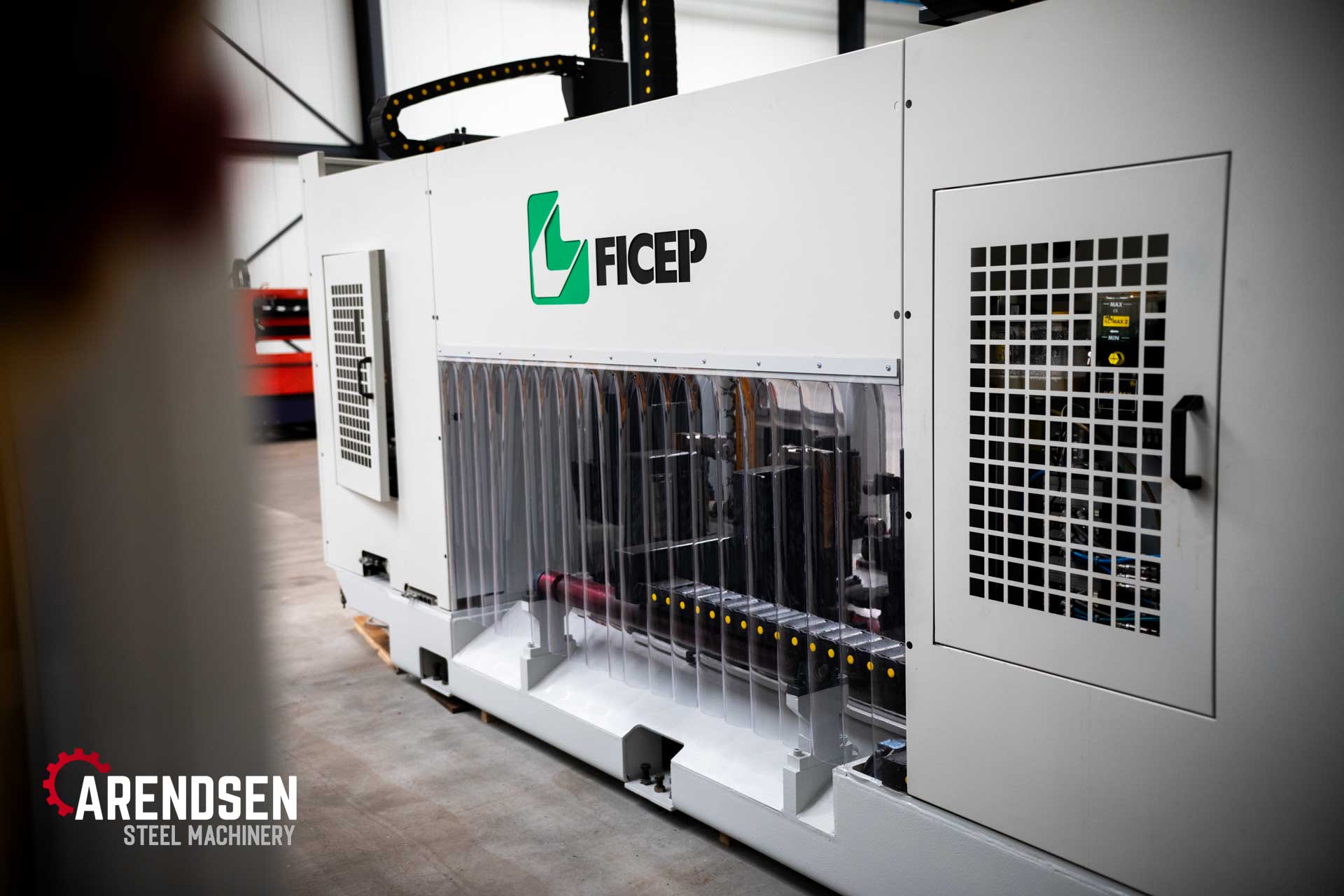

Ficep Orient – 1201 DD

This machine is 100% inspected and ready for production

Machine type

Sections single-spindle drilling, sawing and thermal cutting

Year of Manufacture

2015

Condition

As good as new

Condition

★★★★★
This machine has been completely cleaned and checked

MACHINE INFORMATION

Functioning of the machine (Ficep Orient – 1201 DD)

Automatic CNC drilling, drilling & band sawing, drilling & coping lines for sections

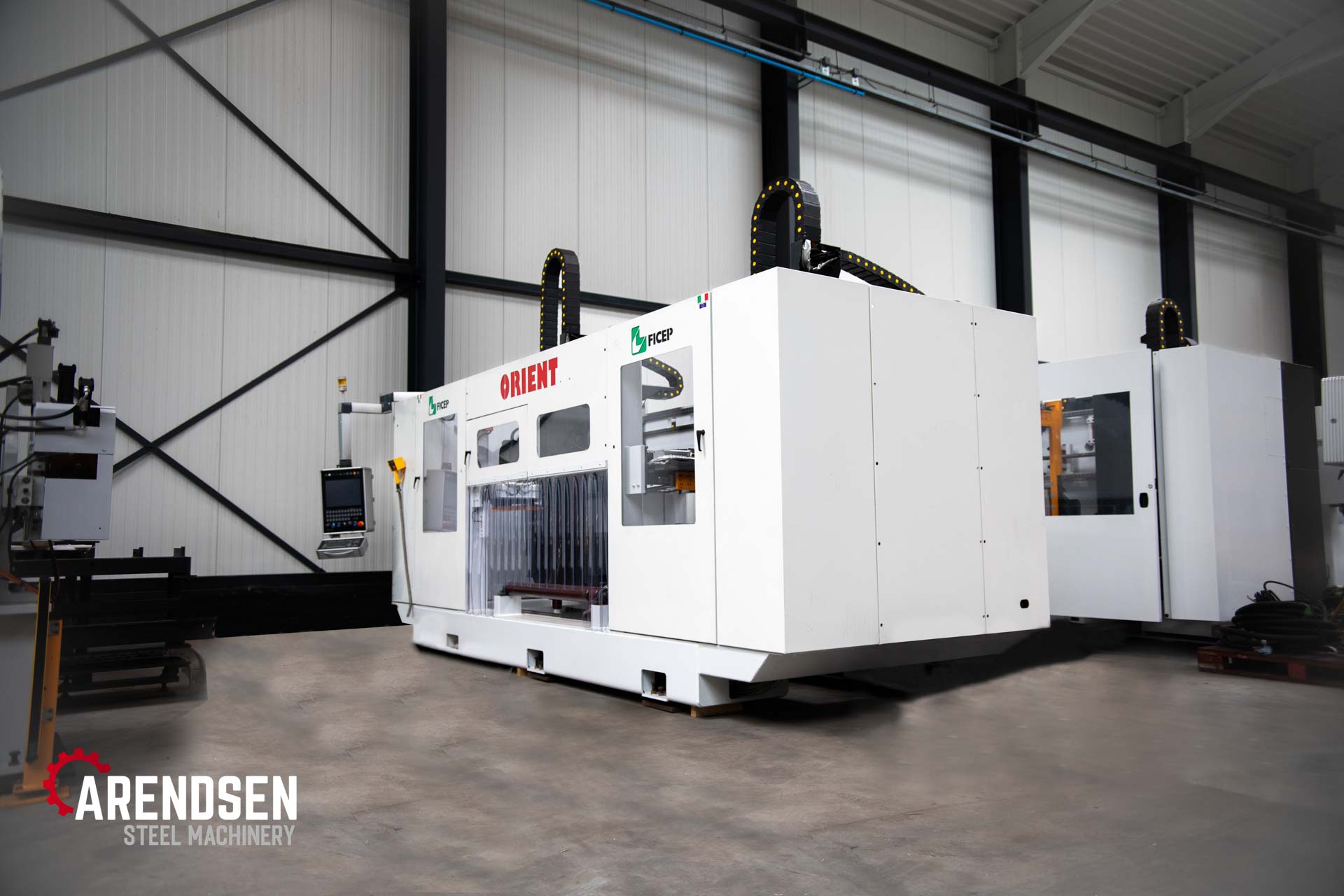

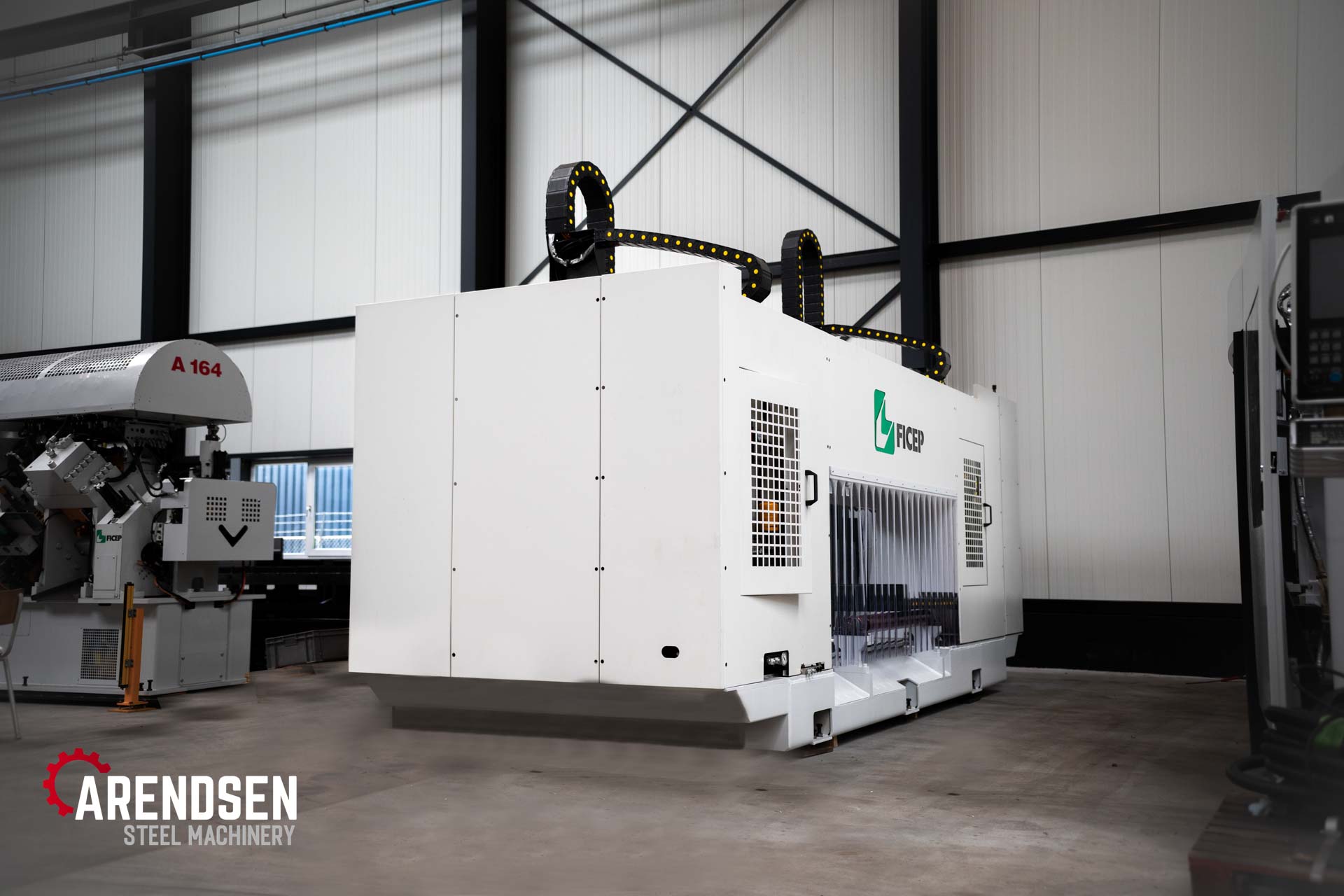

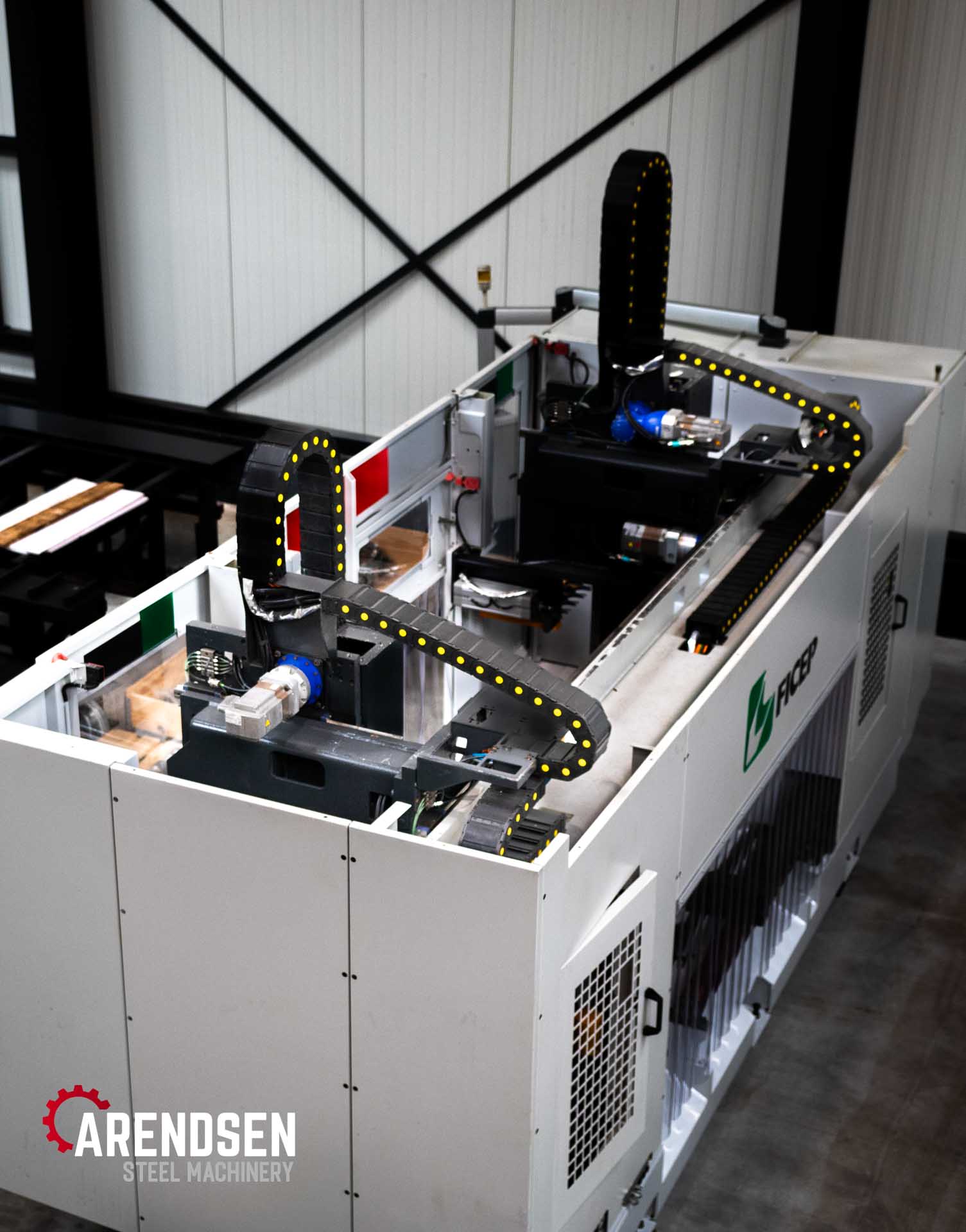

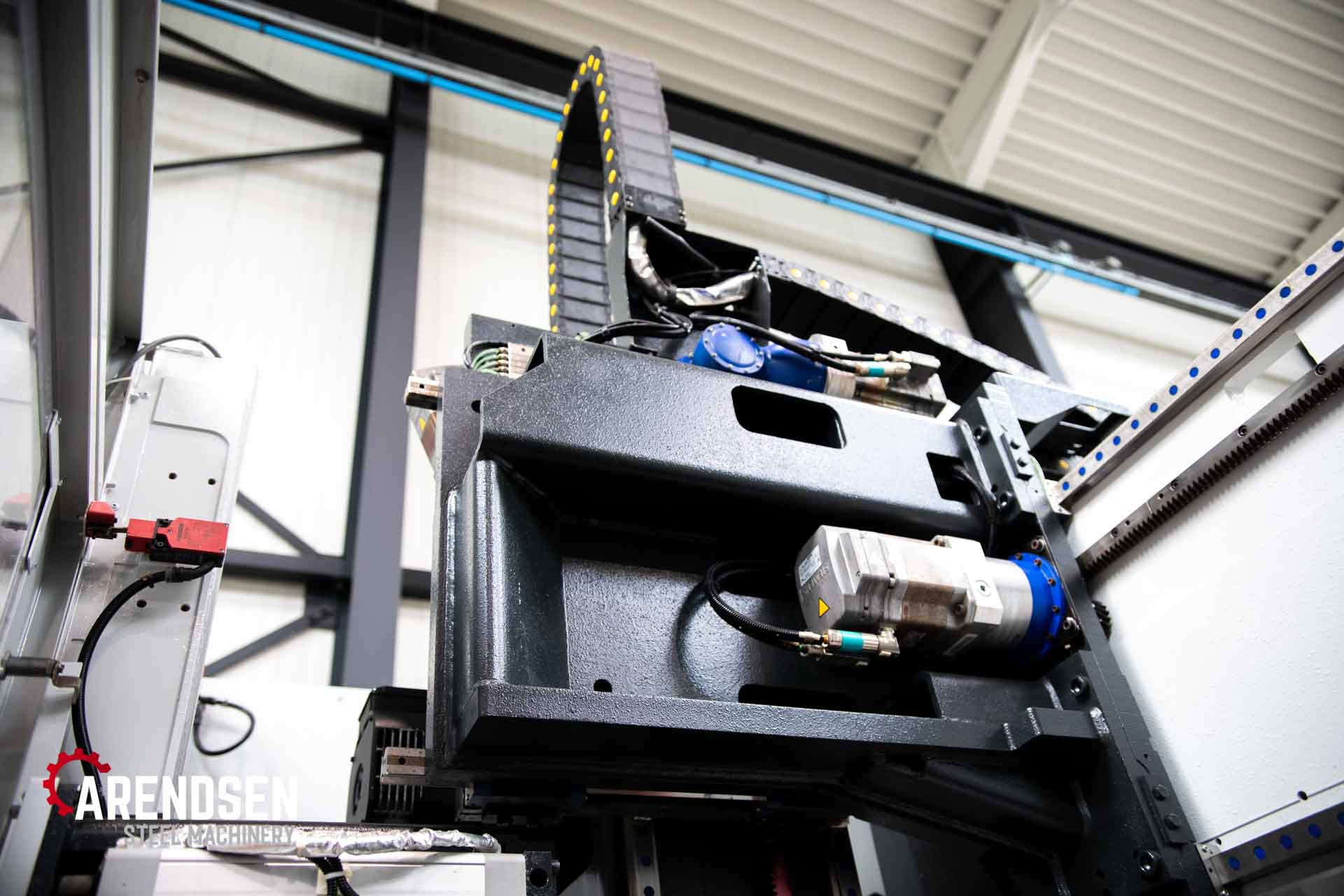

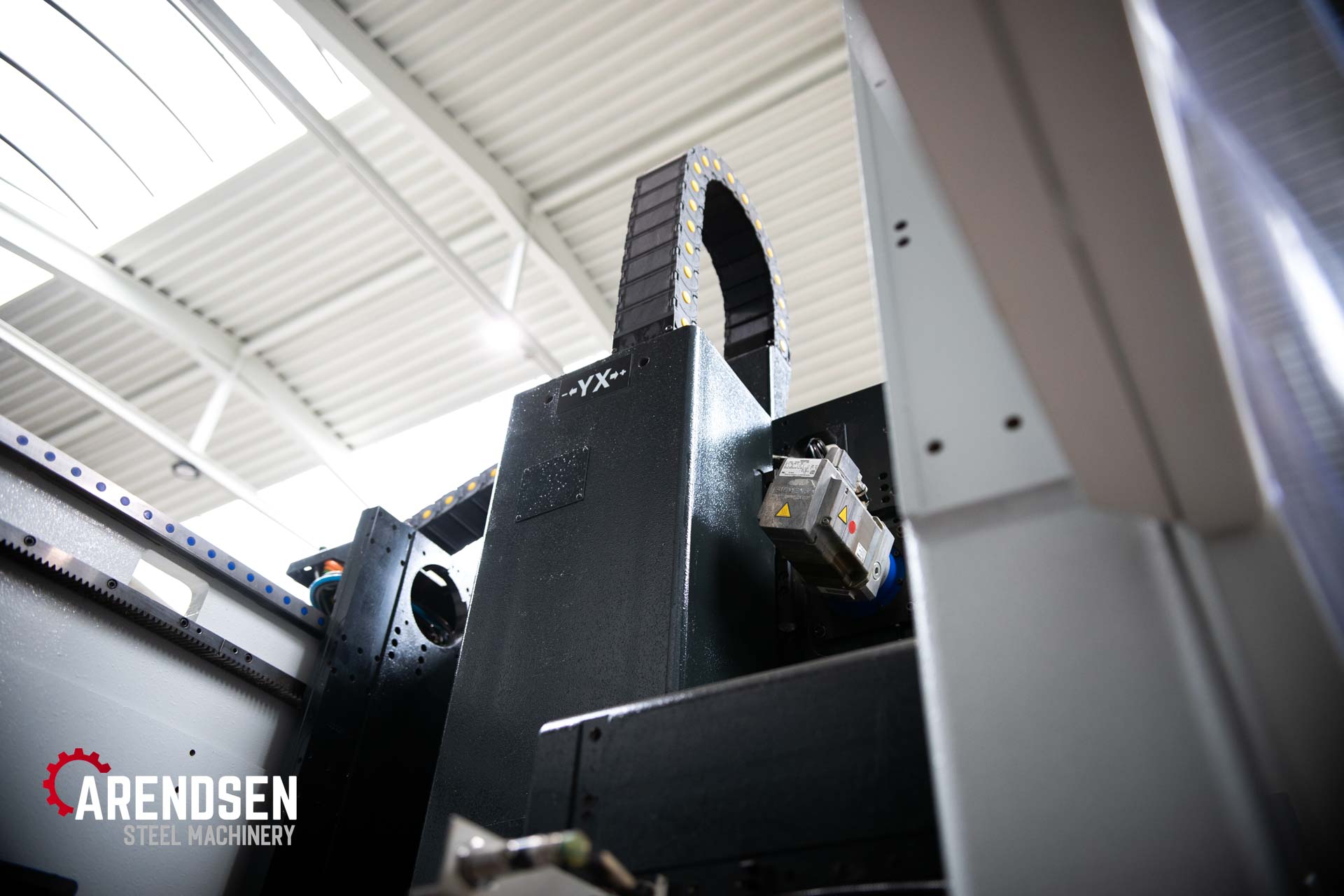

The Orient is a CNC controlled beam drilling line with a single rotating spindle which can process both flanges and the web. Orient is the evolution of a simple and efficient concept developed by Ficep over 40 years ago. Its versatile engineering allows various operations normally available on most multi spindle drilling lines.

Technical specifications

ATTACHED NETWORK CONNECTION

A network connection enables remote diagnostics, allowing our service team to analyze the system from a distance.

COST-EFFECTIVE

Cost-effective option that maintains the dependable quality of this beam line.

TOP-TIER PERFORMANCE

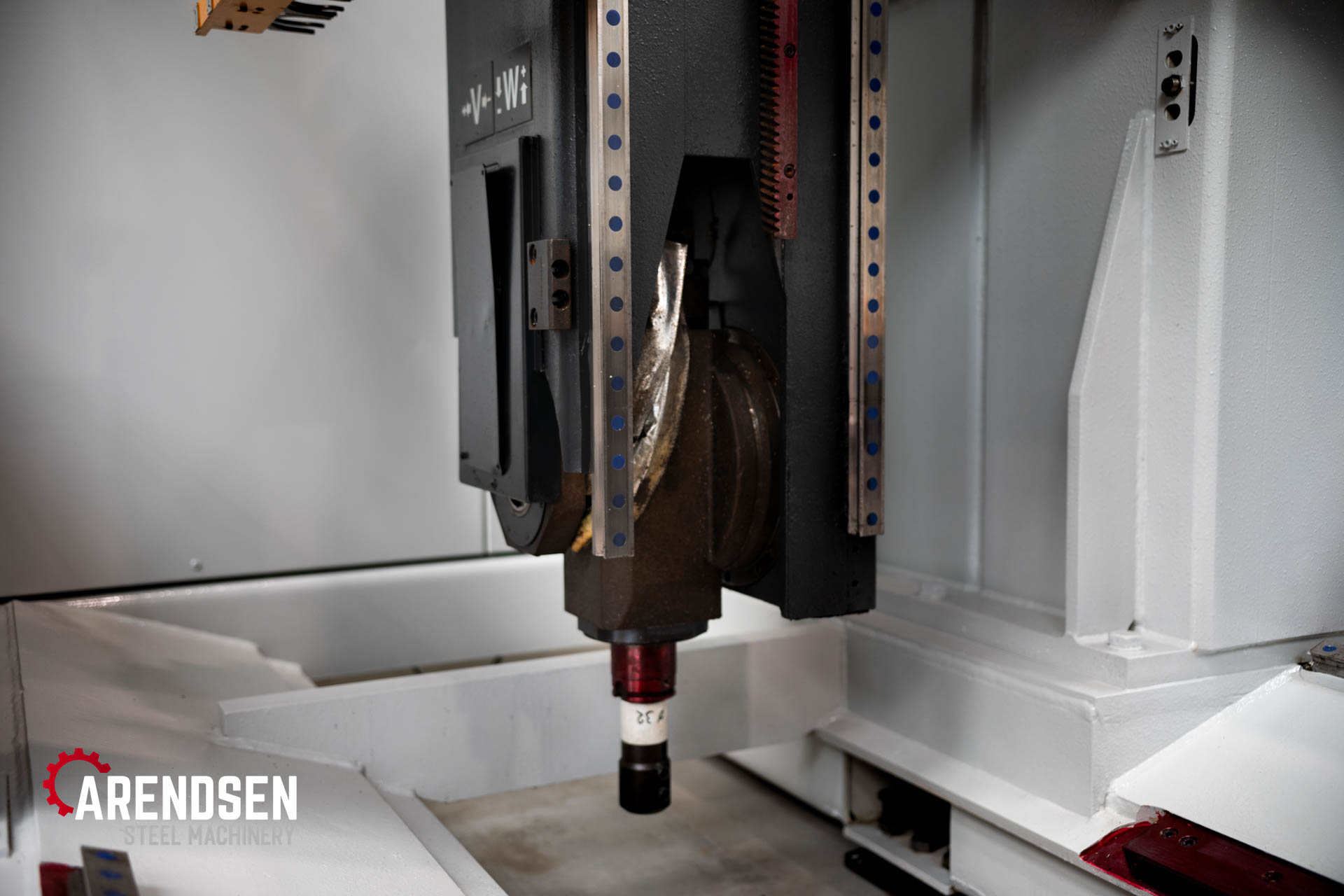

The durable rotating spindle delivers top-tier performance, even after years of heavy use.

EXCEPTIONAL QUALITY

The efficiency of the direct-drive spindles ensures exceptional quality and meets the highest standards.

DETAILS

General Details

Automatic CNC single – spindle drilling lines

Section size MIN.

[min. mm] 80 x 10

Section size MAX.

[max. mm] 1220 x 610

Drilling heads

[no.] 1 (2)

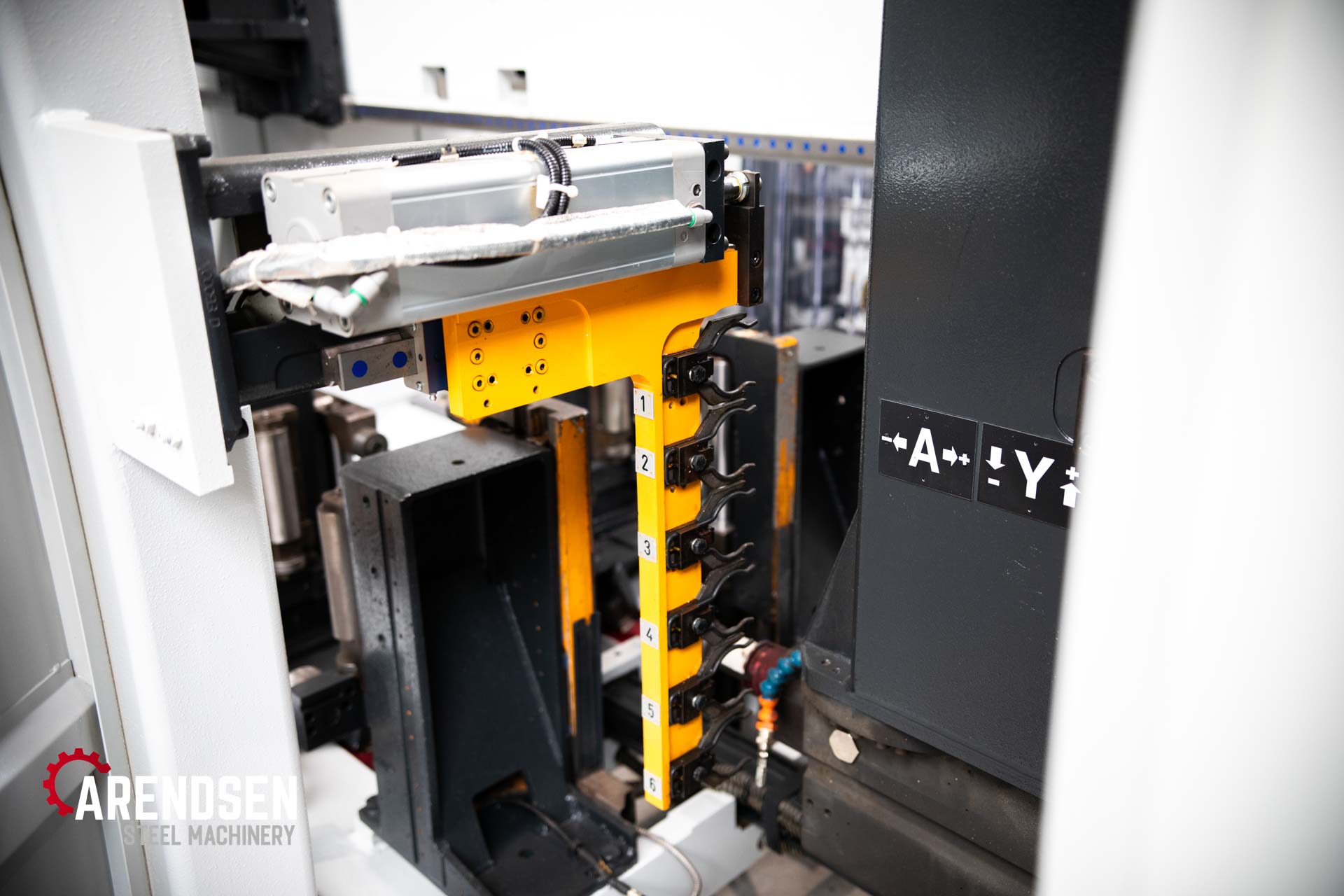

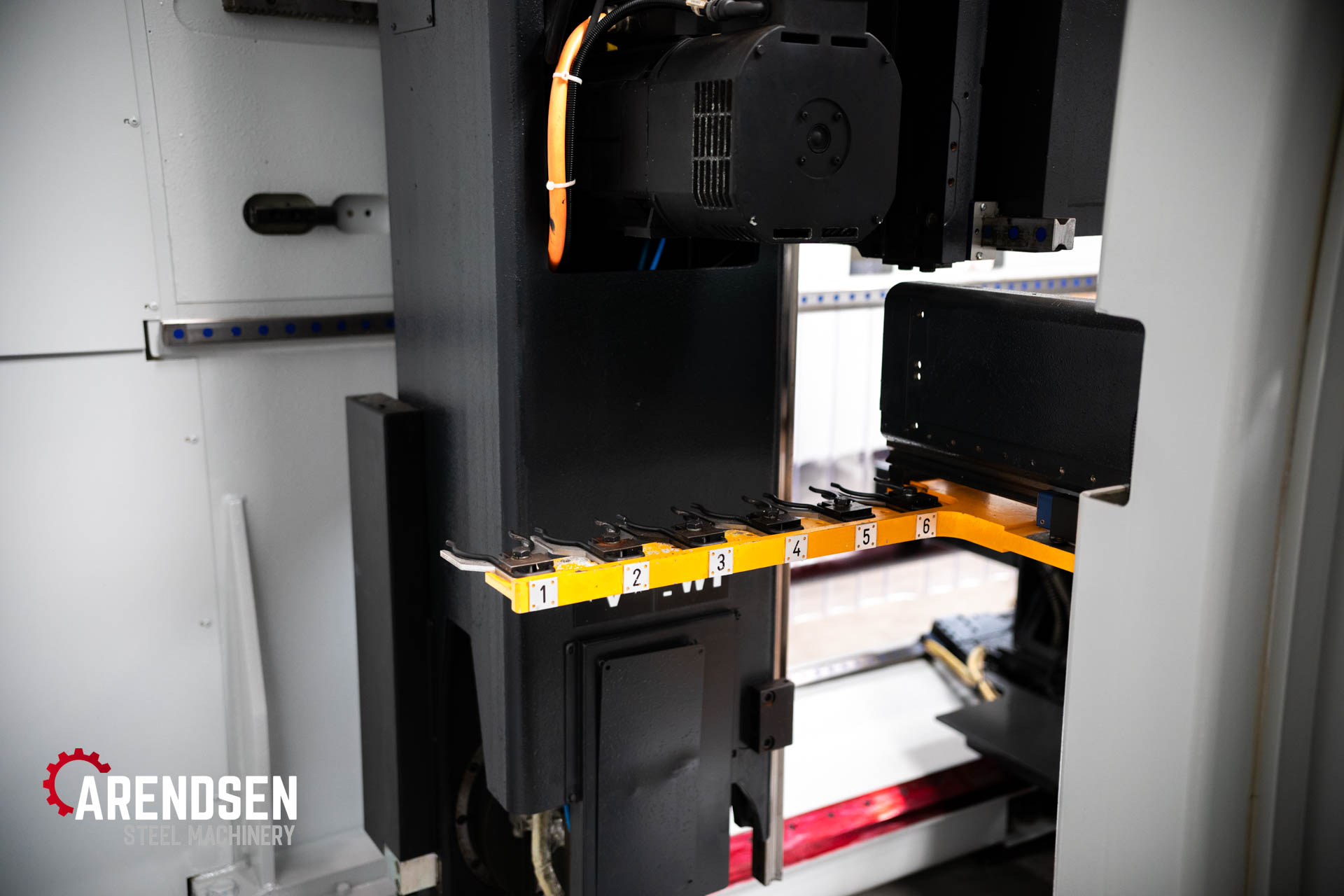

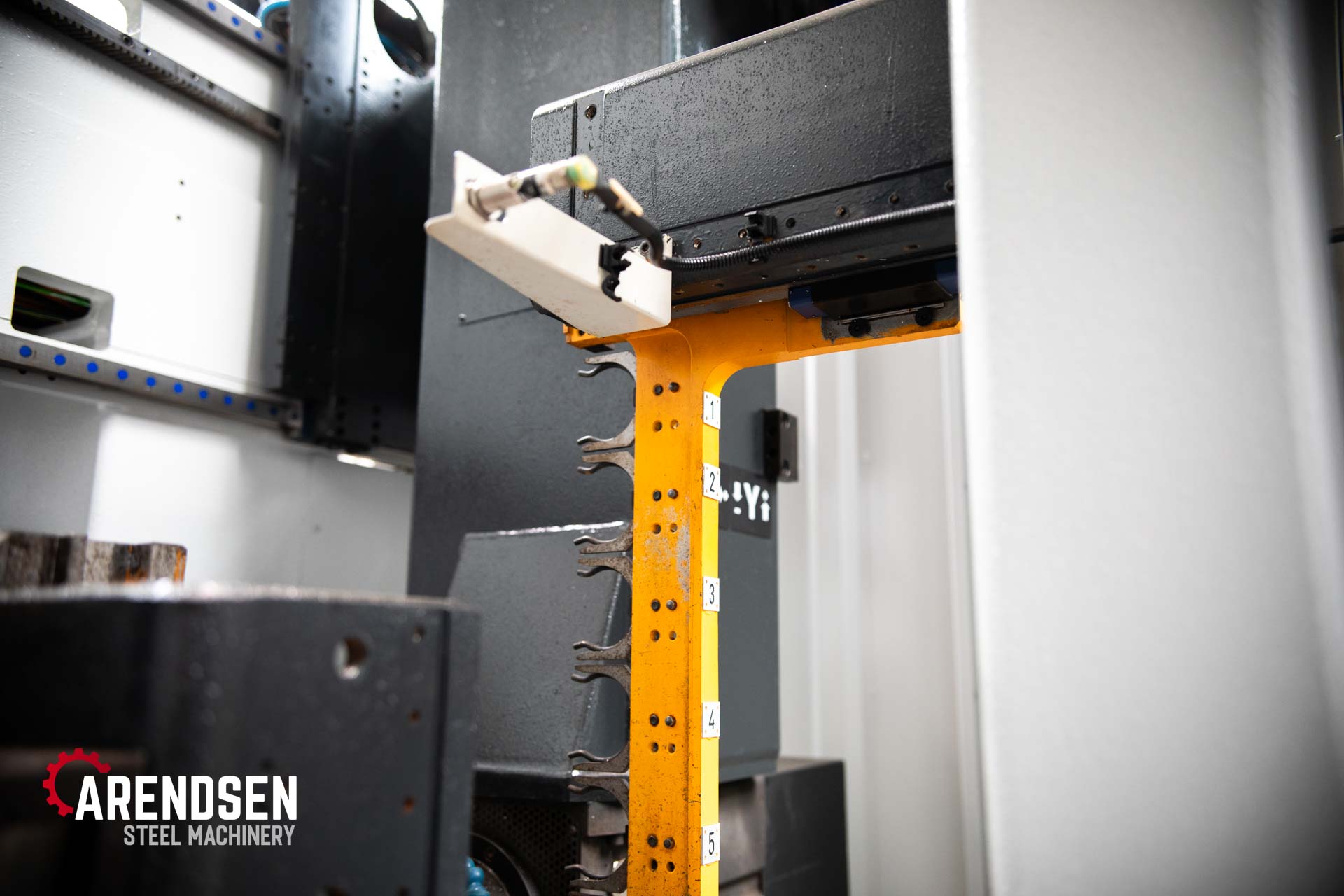

Drilling tools per head

[no.] 6 (12)

Drilling diameter

[max mm] 40

Spindle power

[kW] 31

Spindle speed

[max.RPM] 5000

Machine weight

[kg] 6000

Input and output of the brand Kaltenbach.

Input: 20M
Output: 20M
